Due to transport safety requirements wheels are no longer pre-fitted. If ordered, optional wheel kits are supplied for fitment onsite, not fitted.
Price range: $3,652.00 through $5,210.00
The heavy-duty TU Lever Release Tipping Bin has been manufactured from 3mm plate and designed as a versatile waste storage and handling solution. The pouring lip and rolled edge suits all food industry applications and makes the bin easy to clean.
FEATURES:
• Low profile allows use in confined spaces
• Pouring lip and smooth formed edges make the bin suitable for use in the food industry

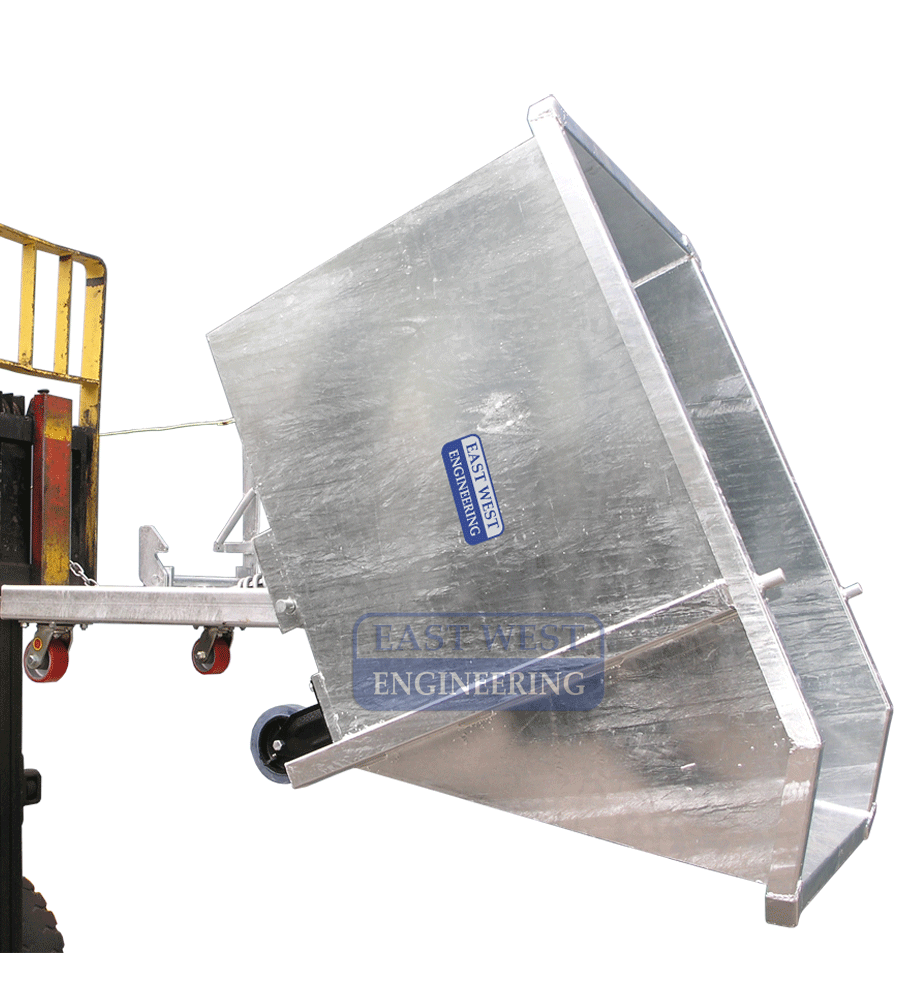

• Pull cord tipping mechanism activated safely from driver’s seat
• Custom built shock absorber prevents impact forces being transmitted to the forklift during emptying
• Fork pockets and safety chain for quick connection to a forklift

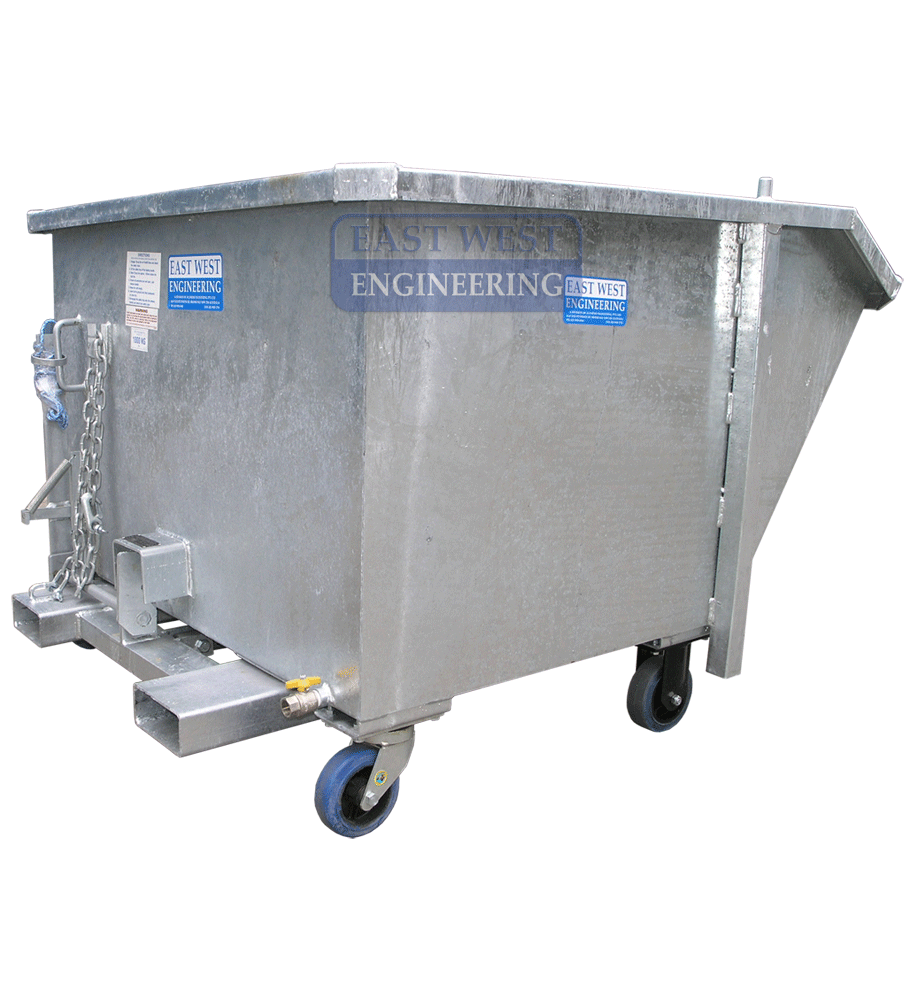

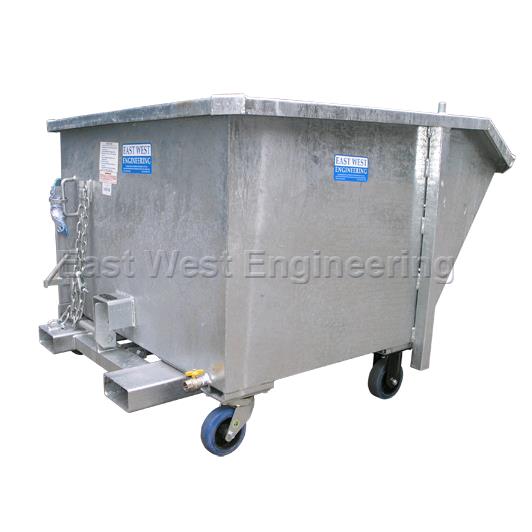

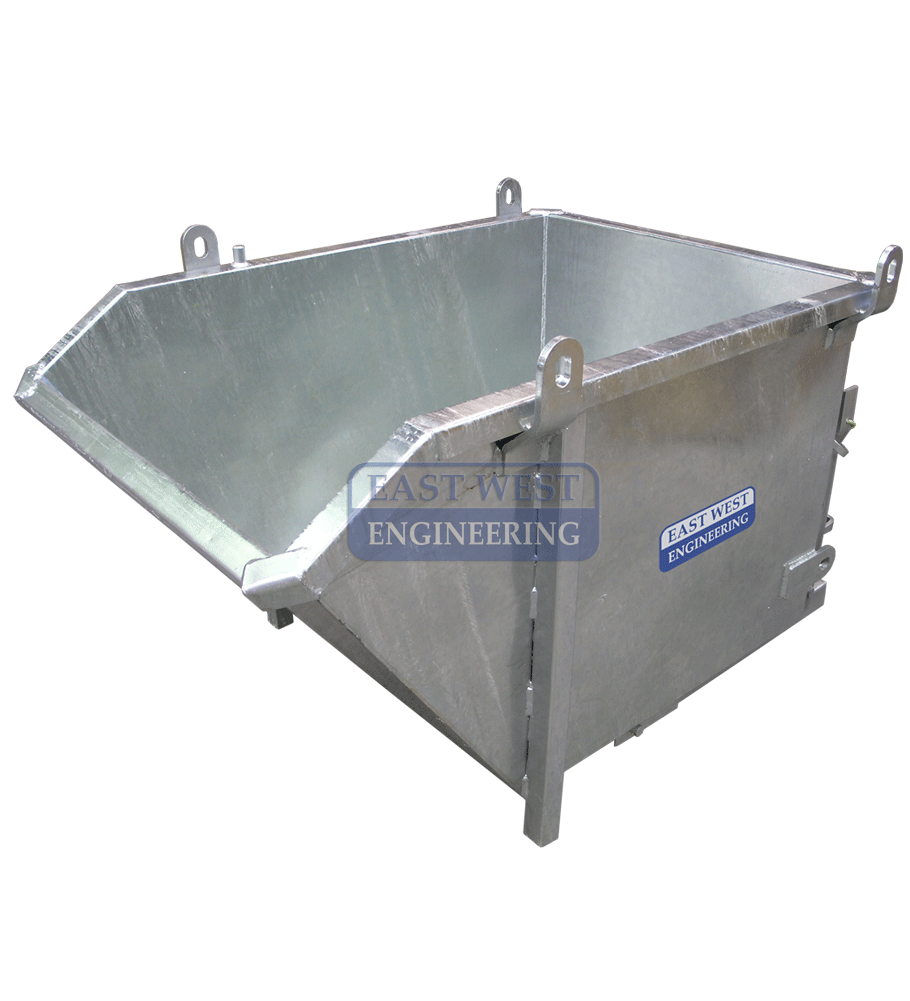

• Optional crane lugs, wheel kit, drain valve & strainer available for supply on request
• Available in either enamel paint or galvanised finish
Due to transport safety requirements wheels are no longer pre-fitted. If ordered, optional wheel kits are supplied for fitment onsite, not fitted.
| Model | Model Description | Working Load Limit (WLL) kg | Capacity (cu.m) | Bin Length (mm) | Bin Width (mm) | Bin Height (mm) |
|---|---|---|---|---|---|---|
| Model: TU6-PS | Model Description: Lever Release Tipping Bin - 0.5cu.m (paint finish) | Working Load Limit (WLL) kg: 1000 | Capacity (cu.m): 0.5 | Bin Length (mm): 1400 | Bin Width (mm): 700 | Bin Height (mm): 900 |
| Model: TU6-G | Model Description: Lever Release Tipping Bin - 0.5cu.m (galvanised finish) | Working Load Limit (WLL) kg: 1000 | Capacity (cu.m): 0.5 | Bin Length (mm): 1400 | Bin Width (mm): 700 | Bin Height (mm): 900 |
| Model: TU9-PS | Model Description: Lever Release Tipping Bin - 0.75cu.m (paint finish) | Working Load Limit (WLL) kg: 1000 | Capacity (cu.m): 0.75 | Bin Length (mm): 1400 | Bin Width (mm): 1000 | Bin Height (mm): 900 |
| Model: TU9-G | Model Description: Lever Release Tipping Bin - 0.75cu.m (galvanised finish) | Working Load Limit (WLL) kg: 1000 | Capacity (cu.m): 0.75 | Bin Length (mm): 1400 | Bin Width (mm): 1000 | Bin Height (mm): 900 |
| Model: TU12-PS | Model Description: Lever Release Tipping Bin - 1.0cu.m (paint finish) | Working Load Limit (WLL) kg: 1000 | Capacity (cu.m): 1.0 | Bin Length (mm): 1400 | Bin Width (mm): 1300 | Bin Height (mm): 900 |
| Model: TU12-G | Model Description: Lever Release Tipping Bin - 1.0cu.m (galvanised finish) | Working Load Limit (WLL) kg: 1000 | Capacity (cu.m): 1.0 | Bin Length (mm): 1400 | Bin Width (mm): 1300 | Bin Height (mm): 900 |
| Model: TU15-PS | Model Description: Lever Release Tipping Bin - 1.25cu.m (paint finish) | Working Load Limit (WLL) kg: 1000 | Capacity (cu.m): 1.25 | Bin Length (mm): 1400 | Bin Width (mm): 1600 | Bin Height (mm): 900 |
| Model: TU15-G | Model Description: Lever Release Tipping Bin - 1.25cu.m (galvanised finish) | Working Load Limit (WLL) kg: 1000 | Capacity (cu.m): 1.25 | Bin Length (mm): 1400 | Bin Width (mm): 1600 | Bin Height (mm): 900 |
| Model: TU18-PS | Model Description: Lever Release Tipping Bin - 1.5cu.m (paint finish) | Working Load Limit (WLL) kg: 1000 | Capacity (cu.m): 1.5 | Bin Length (mm): 1400 | Bin Width (mm): 1900 | Bin Height (mm): 900 |
| Model: TU18-G | Model Description: Lever Release Tipping Bin - 1.5cu.m (galvanised finish) | Working Load Limit (WLL) kg: 1000 | Capacity (cu.m): 1.5 | Bin Length (mm): 1400 | Bin Width (mm): 1900 | Bin Height (mm): 900 |
