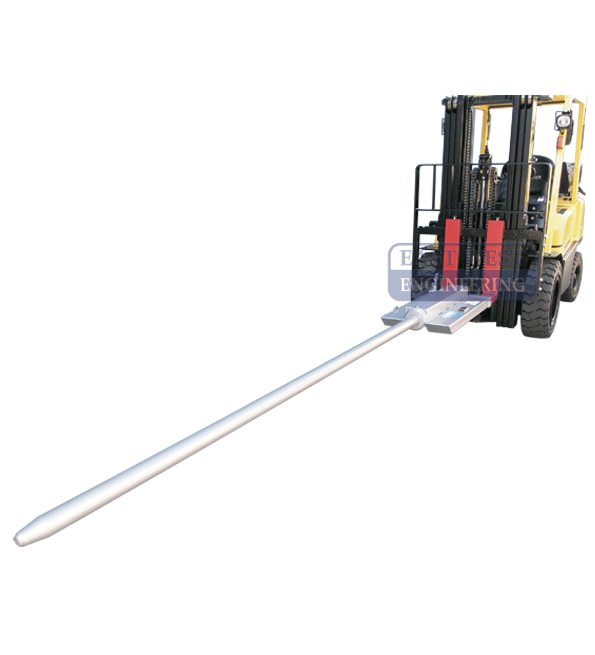

RPS Slip-on Roll Prong

Price range: $1,440.00 through $2,730.00

The RPS Slip-on Roll Prong is designed for handling rolled products.

FEATURES:
• Suitable for handling fabric, cable and coil products
• Suits larger capacity forklifts due to extended load centre created by the fork tines
• Quick and easy to mount on any forklift
• Safety chain prevents unintentional disengagement
• Manufactured from high tensile steel
• Custom prong lengths available on request
• Enamel paint finish

The prong length should be a minimum of 75% of the roll length. The Working Load Limit (WLL) has been calculated at the centre of the prong. If the product being lifted exceeds the length of the prong, please contact East West Engineering for a revised WLL.

Model Description Price (Excl. GST)
Model: RPS-2N-40-1200Description: SLIP-ON PRONG - 40 DIA x 1.2mPrice: $1,440.00

Add to Quote

Model: RPS-2N-50-1800Description: SLIP-ON PRONG - 50 DIA x 1.8mPrice: $1,620.00

Add to Quote

Model: RPS-2N-60-2800Description: SLIP-ON PRONG - 60 DIA x 2.8mPrice: $1,800.00

Add to Quote

Model: RPS-2N-70-2800Description: SLIP-ON PRONG - 70 DIA X 2.8mPrice: $1,990.00

Add to Quote

Model: RPS-2N-80-2800Description: SLIP-ON PRONG - 80 DIA x 2.8mPrice: $2,190.00

Add to Quote

Model: RPS-3N-100-2800Description: SLIP-ON PRONG - 100 DIA x 2.8mPrice: $2,730.00

Add to Quote

ModelModel DescriptionWorking Load Limit (WLL) kgLoad Centre (mm)Prong Diameter (mm)Prong Length (mm)
Model: RPS-2N-40-1200Model Description: SLIP-ON PRONG - 40 DIA x 1.2mWorking Load Limit (WLL) kg: 200Load Centre (mm): 600Prong Diameter (mm): 40Prong Length (mm): 1200
Model: RPS-2N-50-1800Model Description: SLIP-ON PRONG - 50 DIA x 1.8mWorking Load Limit (WLL) kg: 250Load Centre (mm): 900Prong Diameter (mm): 50Prong Length (mm): 1800
Model: RPS-2N-60-2800Model Description: SLIP-ON PRONG - 60 DIA x 2.8mWorking Load Limit (WLL) kg: 340Load Centre (mm): 1400Prong Diameter (mm): 60Prong Length (mm): 2800
Model: RPS-2N-70-2800Model Description: SLIP-ON PRONG - 70 DIA X 2.8mWorking Load Limit (WLL) kg: 510Load Centre (mm): 1400Prong Diameter (mm): 70Prong Length (mm): 2800
Model: RPS-2N-80-2800Model Description: SLIP-ON PRONG - 80 DIA x 2.8mWorking Load Limit (WLL) kg: 850Load Centre (mm): 1400Prong Diameter (mm): 80Prong Length (mm): 2800
Model: RPS-3N-100-2800Model Description: SLIP-ON PRONG - 100 DIA x 2.8mWorking Load Limit (WLL) kg: 1700Load Centre (mm): 1400Prong Diameter (mm): 100Prong Length (mm): 2800
* Custom prong lengths available on request
