Price range: $3,770.00 through $9,430.00

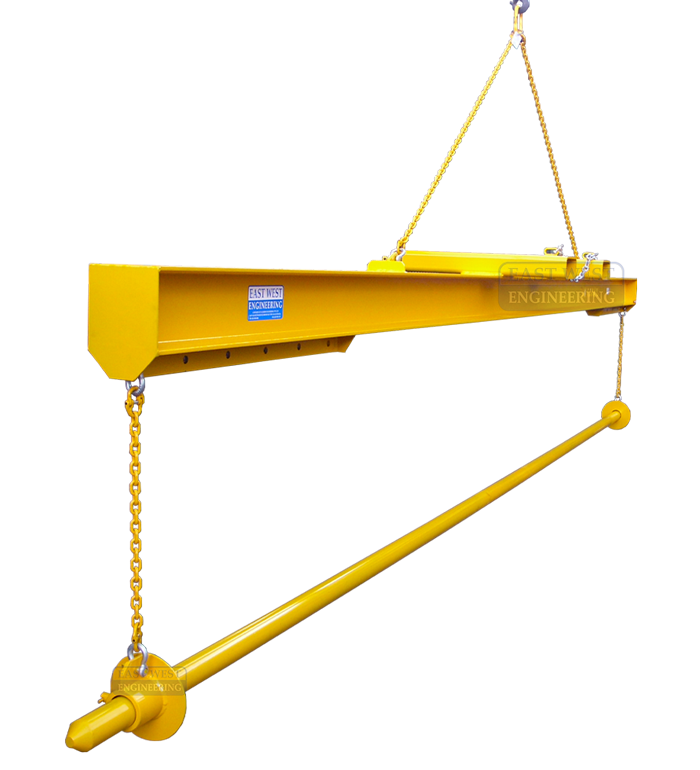

The RDB Roll Dispenser Beam is a spreader beam designed to safely lift and lay rolls and liners such as those used in ground preparation work in construction, landscaping and farming applications. This unit improves operational productivity and reduces manual handling of long, heavy rolls during installation.
FEATURES:
• Suitable for dispensing rolled materials such as geotextiles
• Adjustable lift positions
• Beam to spindle link chains supplied
• 2 leg chain sling supplied standard
• Fork pockets fitted to 6m models*
• Customised units to suit application available on request
• Enamel paint finish
* Fork pockets fitted to type RDB1.25X6 & RDB2X6 only
| Model | Description | Price (Excl. GST) | ||
|---|---|---|---|---|
| Model: RDB1.25X6 | Description: WLL 1250kg x 4000-6000mm wide | Price: $7,260.00 | ||
| Model: RDB2X2 | Description: WLL 2000kg x 600-2000mm wide | Price: $3,770.00 | ||
| Model: RDB2X6 | Description: WLL 2000kg x 4000-6000mm wide | Price: $9,430.00 | ||
| Model: RDB3X3 | Description: WLL 3000kg x 896-3000mm wide | Price: $4,370.00 | ||
| Model | Model Description | Working Load Limit (WLL) kg | Min. Roll Width (mm) | Max. Roll Width (mm) | Min. Roll Hole Diameter (mm) | Max. Roll Diameter (mm) |
|---|---|---|---|---|---|---|
| Model: RDB1.25X6 | Model Description: WLL 1250kg x 4000-6000mm wide | Working Load Limit (WLL) kg: 1250 | Min. Roll Width (mm): 4000 | Max. Roll Width (mm): 6000 | Min. Roll Hole Diameter (mm): 80 | Max. Roll Diameter (mm): 1500 |
| Model: RDB2X2 | Model Description: WLL 2000kg x 600-2000mm wide | Working Load Limit (WLL) kg: 2000 | Min. Roll Width (mm): 600 | Max. Roll Width (mm): 2000 | Min. Roll Hole Diameter (mm): 80 | Max. Roll Diameter (mm): 1500 |
| Model: RDB2X6 | Model Description: WLL 2000kg x 4000-6000mm wide | Working Load Limit (WLL) kg: 2000 | Min. Roll Width (mm): 4000 | Max. Roll Width (mm): 6000 | Min. Roll Hole Diameter (mm): 110 | Max. Roll Diameter (mm): 1500 |
| Model: RDB3X3 | Model Description: WLL 3000kg x 896-3000mm wide | Working Load Limit (WLL) kg: 3000 | Min. Roll Width (mm): 896 | Max. Roll Width (mm): 3000 | Min. Roll Hole Diameter (mm): 110 | Max. Roll Diameter (mm): 1500 |
