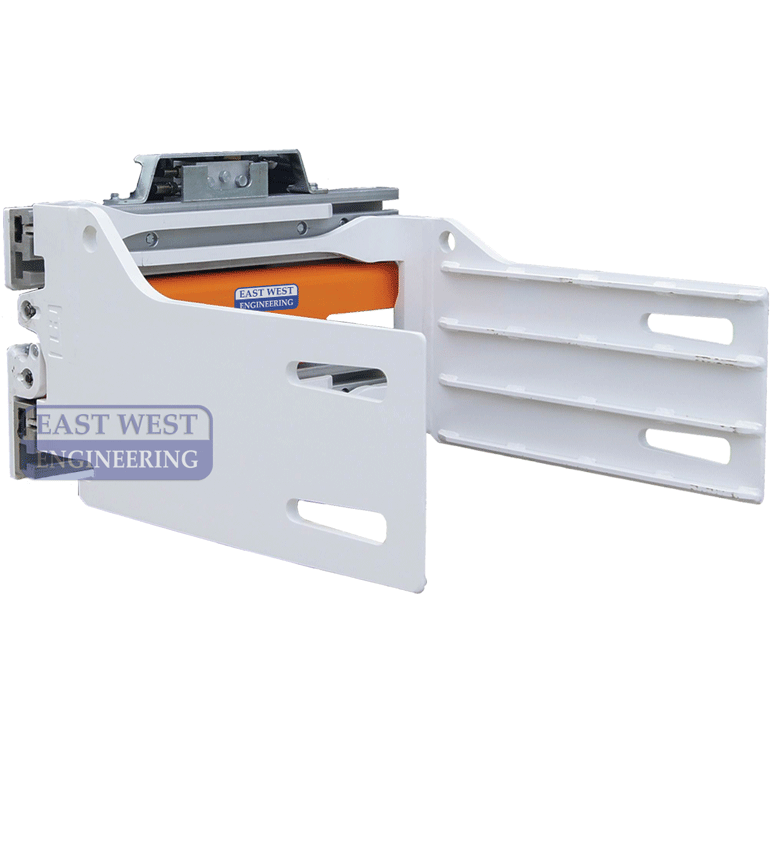

RBC Bale Clamp

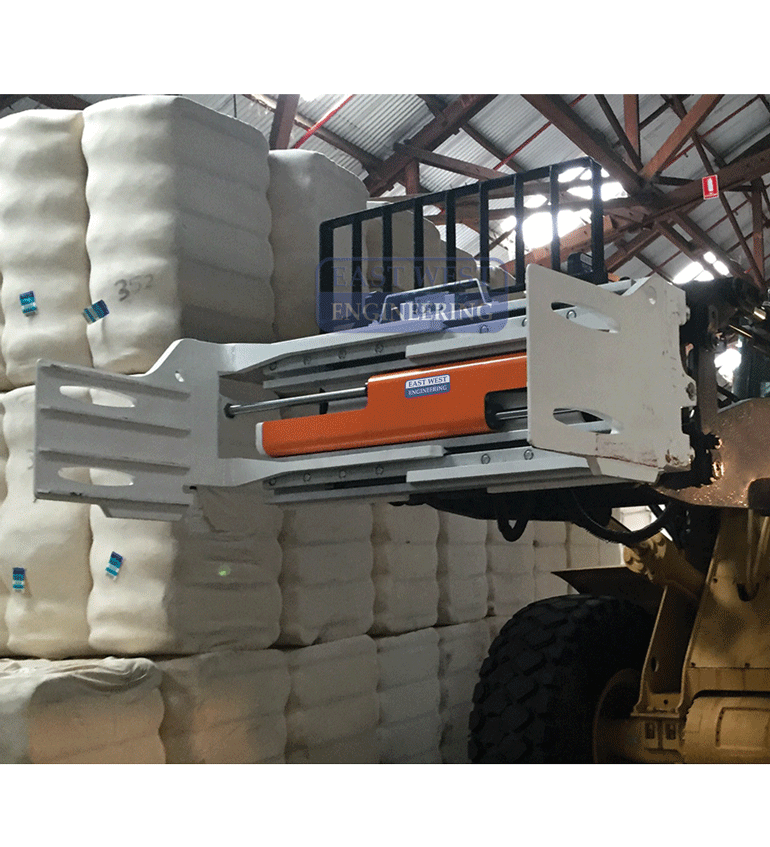

The RBC Bale Clamp is designed to efficiently handle baled products or blocks.

FEATURES:
• Enable forklift operator to clamp unpalletised loads
• Commonly used for handling baled products like waste paper, cotton, wool, textile and metal scrap bales
• Lateral sliding arm design for smooth clamping and sideshifting function
• Ribbed arms for secure grip and handling of load
• Available in a wide range of openings and arm lengths
• Maximum residual capacity due to minimum weight and lost load
• Cylinder protection to prevent damage
• Robust design
• Sideshift function

View Pricing

NOTE:

• Two additional hydraulic circuits required
• Opening range refers to the distance between arm tips
• Sideshift range: +/-100mm
• Hoses not included
• Please contact the forklift manufacturer for the residual capacity of attachment
• Further technical details available upon request, please call 1800 061 998

SKU: RBC_Main Categories: , , , , ,
Model Description Price (Excl. GST)
Model: RBC20D-B002Description: Bale Clamp - C2, 1040mm widePrice: POA

Add to Quote

Model: RBC20D-B004Description: Bale Clamp - C2, 1040mm widePrice: POA

Add to Quote

Model: RBC20D-B007Description: Bale Clamp - C2, 1600mm widePrice: POA

Add to Quote

Model: RBC22D-C004Description: Bale Clamp - C3, 1600mm widePrice: POA

Add to Quote

Model: RBC28D-C002Description: Bale Clamp - C3, 1016mm widePrice: POA

Add to Quote

Model: RBC28D-C004Description: Bale Clamp - C3, 1200mm widePrice: POA

Add to Quote

Model: RBC28D-C024Description: Bale Clamp - C3, 1600mm widePrice: POA

Add to Quote

Model: RBC28D-C025Description: Bale Clamp - C3, 1615mm widePrice: POA

Add to Quote

Model: RBC30F-C001Description: Bale Clamp - C3, 1265mm widePrice: POA

Add to Quote

Model: RBC35F-C006Description: Bale Clamp - C3, 1820mm widePrice: POA

Add to Quote

Model: RBC50F-D001Description: Bale Clamp - C4, 1600mm widePrice: POA

Add to Quote

ModelModel DescriptionFrame Width (mm)
Model: RBC20D-B002Model Description: Bale Clamp - C2, 1040mm wideFrame Width (mm): 1040
Model: RBC20D-B004Model Description: Bale Clamp - C2, 1040mm wideFrame Width (mm): 1040
Model: RBC20D-B007Model Description: Bale Clamp - C2, 1600mm wideFrame Width (mm): 1600
Model: RBC22D-C004Model Description: Bale Clamp - C3, 1600mm wideFrame Width (mm): 1600
Model: RBC28D-C002Model Description: Bale Clamp - C3, 1016mm wideFrame Width (mm): 1016
Model: RBC28D-C004Model Description: Bale Clamp - C3, 1200mm wideFrame Width (mm): 1200
Model: RBC28D-C024Model Description: Bale Clamp - C3, 1600mm wideFrame Width (mm): 1600
Model: RBC28D-C025Model Description: Bale Clamp - C3, 1615mm wideFrame Width (mm): 1615
Model: RBC30F-C001Model Description: Bale Clamp - C3, 1265mm wideFrame Width (mm): 1265
Model: RBC35F-C006Model Description: Bale Clamp - C3, 1820mm wideFrame Width (mm): 1820
Model: RBC50F-D001Model Description: Bale Clamp - C4, 1600mm wideFrame Width (mm): 1650
? Two additional hydraulic circuits required
? Opening range refers to the distance between arm tips
? Sideshift range: +/-100mm
? Hoses not included
? Please contact the forklift manufacturer for the residual capacity of attachment
 Model Capacity
@ LC
(kg @ mm)		 Mounting Class Opening Range
(mm)		 Arm
Height
(mm)		 Arm
Length
(mm)		 Frame
Width
(mm)		 Arm
Thickness
(mm)		 Lost
Load
(mm)		 Unit
Weight
(mm)
 RBC20D-B002 2000@500 II 450-1730 415 1180 1040 80 130 460
 RBC20D-B004 2000@500 II 450-1730 415 780 1040 75 130 377
 RBC20D-B007 2000@500 II/III 430-2260 415 1180 1600 80 130 545
 RBC22D-C004 2200@500 II/III 490-2330 460 750 1600 75 146 610
 RBC28D-C002 2800@500 III 580-1930 460 1180 1015 80 150 585
 RBC28D-C004 2800@500 III 590-2110 460 1183 1200 80 150 620
 RBC28D-C024 2800@500 III 490-2330 460 750 1600 75 150 610

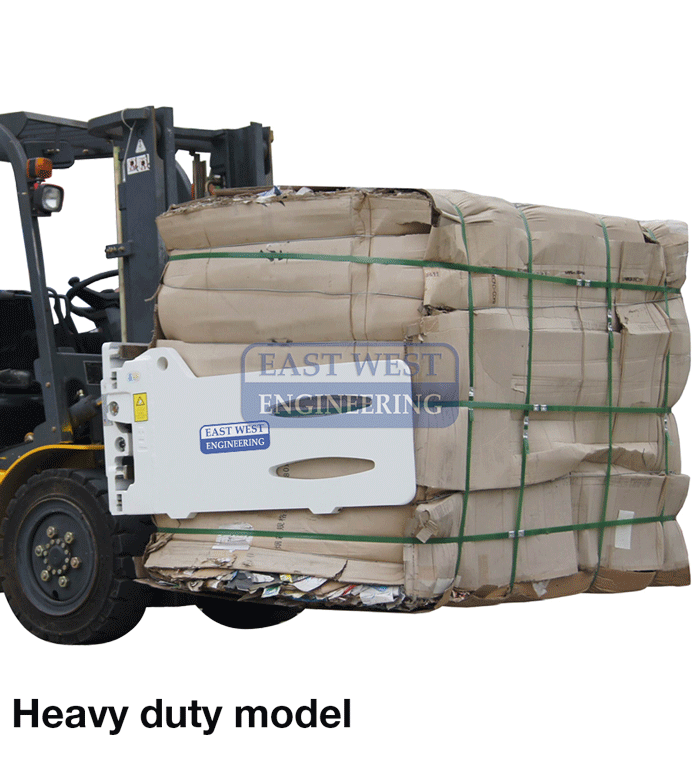

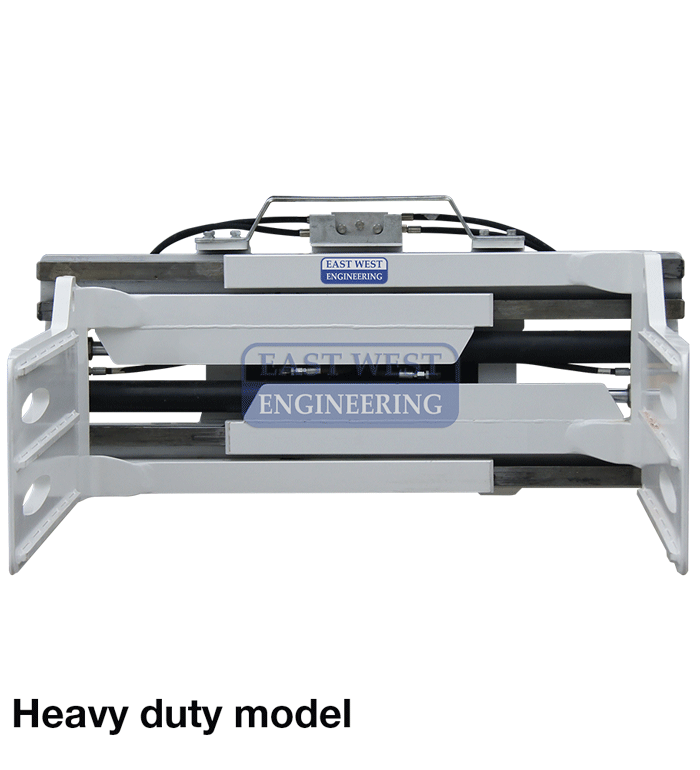

 Heavy Duty Range
 RBC30F-C001 3000@500 III 750-2100 460 1200 1265 85 140 776
 RBC30F-C002 3000@500 III 460-2300 460 1200 1680 85 140 857
 RBC30F-C003 3000@500 III 530-1880 460 1200 1130 85 140 720
 RBC30F-C006 3000@500 III 610-2450 460 1200 1680 85 140 845
 RBC30F-C007 3000@500 III 520-1870 460 900 1130 75 140 660
 RBC35F-C006 3500@600 III 560-2630 460 1000 1820 95 162 1070
 RBC35F-D001 3500@600 IV 690-2760 460 1350 1700 90 162 1150
 RBC35F-D004 3500@600 IV 660-2560 460 1600 1540 95 162 1220
 RBC35F-D006 3500@600 IV 560-2630 460 1000 1820 95 162 1070
 RBC35F-D007 3500@600 IV 560-2630 460 1500 1820 95 162 1240
 RBC50F-D001 5000@600 IV 580-2500 460 1600 1650 95 182 1530

NOTE:

• Two additional hydraulic circuits required
• Opening range refers to the distance between arm tips
• Sideshift range: +/-100mm
• Hoses not included
• Please contact the forklift manufacturer for the residual capacity of attachment
• Further technical details available upon request, please call 1800 061 998
