QHFC20 Hinged Fork Carriage

Price range: $1,045.00 through $1,505.00

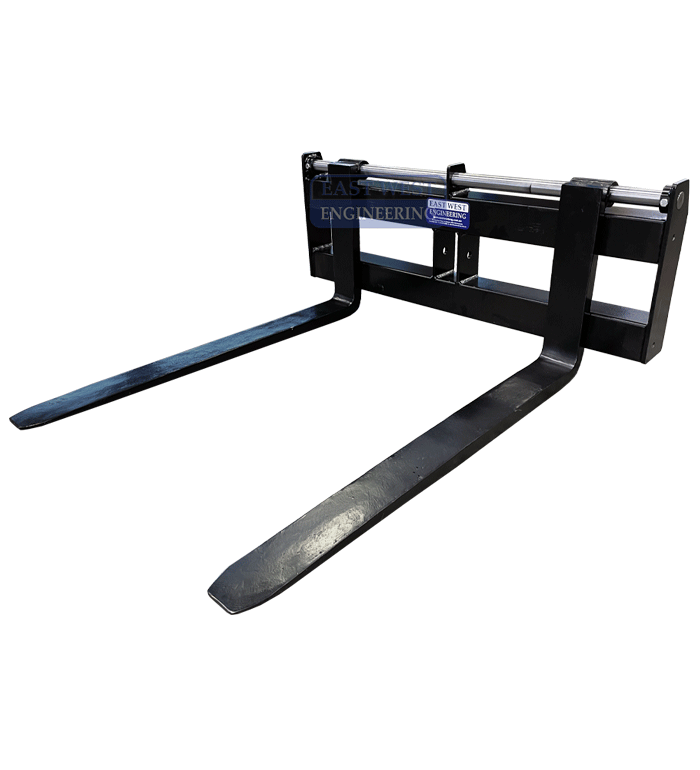

The QHFC20 Hinged Carriage is a heavy duty Class 2 fork carriage designed to suit a tractor, skid steer or track loaders and comes fitted with pin mounted fork tines.

FEATURES:
• Fitted with 125 x 32mm fork tines with a length of 1070mm
• Pin mounted fork tines prevent hook-up when reversing
• Various hitch options available on request
• Q-Fit carriage designed for easy fitment of optional accessories
• Enamel paint finish

OPTIONAL Q-FIT ACCESSORIES:
• QEH25LG Bolt-on Load Guard for additional operator safety
• QEH25LH  420mm Lifting Jib with hook & shackle (WLL 1500kg)
• QEH25LHX 1000mm Lifting Jib with hook & shackle (WLL 800kg)
• QEH25LHX2 1750mm Lifting Jib with hook & shackle (WLL 400kg)
• QEH25TH Towing Hitch with towball  (500kg tow capacity)
• QPH35 Pintle Hook Tow Hitch  (500/2500kg tow capacity)
• QRP35 Drop Pin Tow Hitch  (500/2500kg tow capacity)
• QHB2 Bale Spear Attachment (2 spears)
• QHBV2 Vertical Bale Spear Attachment (2 spears)
• QHB4 Bale Spear Attachment (4 spears)



Some models of skid steer do not fit standard skid steer attachments. Check with the manufactuter for compatability.  Actual lifting capacities are determined by the working capacity of the skid steer.

Model Description Price (Excl. GST)

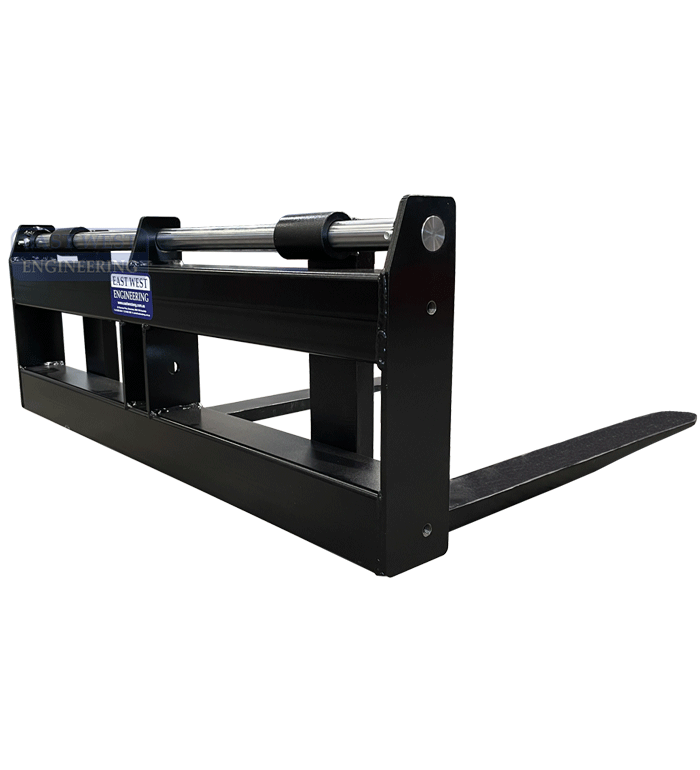

Model: QHFC20Description: Hinged Fork Carriage (no hitch)Price: $1,045.00

Add to Quote

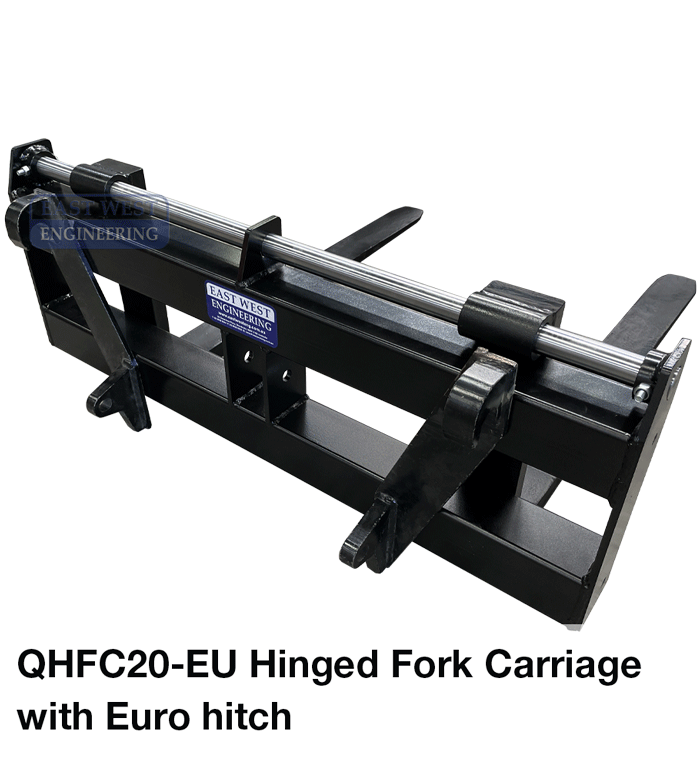

Model: QHFC20-EUDescription: Hinged Fork Carriage + Euro hitchPrice: $1,275.00

Add to Quote

Model: QHFC20-3PLDescription: Hinged Fork Carriage + 3 point linkagePrice: $1,495.00

Add to Quote

Model: QHFC20-BHSDescription: Hinged Fork Carriage + Burder small hitchPrice: $1,495.00

Add to Quote

Model: QHFC20-BHLDescription: Hinged Fork Carriage + Burder large hitchPrice: $1,505.00

Add to Quote

Model: QHFC20-CHDescription: Hinged Fork Carriage + Challenge hitchPrice: $1,275.00

Add to Quote

Model: QHFC20-SSDescription: Hinged Fork Carriage + Skid Steer hitchPrice: $1,285.00

Add to Quote

Model: QHFC20-JCDescription: Hinged Fork Carriage + Forklift carrier bracketsPrice: $1,505.00

Add to Quote

ModelModel DescriptionWorking Load Limit (WLL) kgLoad Centre (mm)Max. Fork Tine Spread (mm)Carriage Width (mm)Carriage Width (mm)
Model: QHFC20Model Description: Hinged Fork Carriage (no hitch)Working Load Limit (WLL) kg: 2000Load Centre (mm): 500Max. Fork Tine Spread (mm): 1150Carriage Width (mm): 1200Carriage Width (mm): 1200
Model: QHFC20-EUModel Description: Hinged Fork Carriage + Euro hitchWorking Load Limit (WLL) kg: 2000Load Centre (mm): 500Max. Fork Tine Spread (mm): 1150Carriage Width (mm): 1200Carriage Width (mm): 1200
Model: QHFC20-3PLModel Description: Hinged Fork Carriage + 3 point linkageWorking Load Limit (WLL) kg: 2000Load Centre (mm): 500Max. Fork Tine Spread (mm): 1150Carriage Width (mm): 1200Carriage Width (mm): 1200
Model: QHFC20-BHSModel Description: Hinged Fork Carriage + Burder small hitchWorking Load Limit (WLL) kg: 2000Load Centre (mm): 500Max. Fork Tine Spread (mm): 1150Carriage Width (mm): 1200Carriage Width (mm): 1200
Model: QHFC20-BHLModel Description: Hinged Fork Carriage + Burder large hitchWorking Load Limit (WLL) kg: 2000Load Centre (mm): 500Max. Fork Tine Spread (mm): 1150Carriage Width (mm): 1200Carriage Width (mm): 1200
Model: QHFC20-CHModel Description: Hinged Fork Carriage + Challenge hitchWorking Load Limit (WLL) kg: 2000Load Centre (mm): 500Max. Fork Tine Spread (mm): 1150Carriage Width (mm): 1200Carriage Width (mm): 1200
Model: QHFC20-SSModel Description: Hinged Fork Carriage + Skid Steer hitchWorking Load Limit (WLL) kg: 2000Load Centre (mm): 500Max. Fork Tine Spread (mm): 1150Carriage Width (mm): 1200Carriage Width (mm): 1200
Model: QHFC20-JCModel Description: Hinged Fork Carriage + Forklift carrier bracketsWorking Load Limit (WLL) kg: 2000Load Centre (mm): 500Max. Fork Tine Spread (mm): 1150Carriage Width (mm): 1200Carriage Width (mm): 1200
