Name: QHCA QH Carriage Adaptor
SKU: QHCA_Main
Availability: InStock

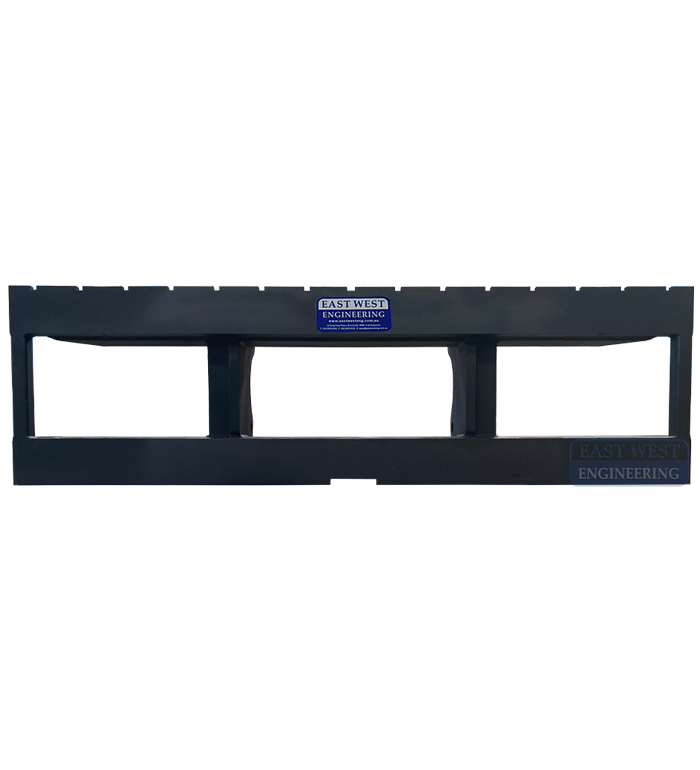

QHCA QH Carriage Adaptor

The QHCA Carriage Adaptor is designed for applications where fork tines and other attachments are to be fitted to a telehandler or loader machine with a ‘quick hitch’ or tool carrier. This unit is custom fitted with a quick hitch coupling to suit each telehandler carriage.

FEATURES:

Universal fork carriage allowing customer to fit their fork tines and other attachments
Custom manufactured and individually designed to suit most model telehandlers
ISO/FEM Carriage Class 2, 3 & 4 models avilable
Supplied with quick hitch as specified by customer
Made from high grade steel

Compare

Prices pending hitch compatibility. Check compatibility with your truck manufacturer. Tines not included, available on request

Model	Description	Price (Excl. GST)
Model: QHCA2	Description: QH Carriage Adaptor C2 - 1200mm wide	Price: $2,850.00	Compare Product	Add to Quote
Model: QHCA2-22	Description: QH Carriage Adaptor C2 - 2200mm wide	Price: $3,400.00	Compare Product	Add to Quote
Model: QHCA3	Description: QH Carriage Adaptor C3 - 1200mm wide	Price: $3,000.00	Compare Product	Add to Quote
Model: QHCA4-12	Description: QH Carriage Adaptor C4 - 1200mm wide	Price: $3,920.00	Compare Product	Add to Quote
Model: QHCA4-16	Description: QH Carriage Adaptor C4 - 1600mm wide	Price: $4,880.00	Compare Product	Add to Quote
Model: QHCA4	Description: QH Carriage Adaptor C4 - 2400mm wide	Price: $5,470.00	Compare Product	Add to Quote

Model	Model Description	Working Load Limit (WLL) kg	Load Centre (mm)	Carriage Width (mm)	Carriage Width (mm)
Model: QHCA2	Model Description: QH Carriage Adaptor C2 - 1200mm wide	Working Load Limit (WLL) kg: 2500	Load Centre (mm): 500	Carriage Width (mm): 1200	Carriage Width (mm): 1200
Model: QHCA2-22	Model Description: QH Carriage Adaptor C2 - 2200mm wide	Working Load Limit (WLL) kg: 2500	Load Centre (mm): 500	Carriage Width (mm): 2200	Carriage Width (mm): 2200
Model: QHCA3	Model Description: QH Carriage Adaptor C3 - 1200mm wide	Working Load Limit (WLL) kg: 4500	Load Centre (mm): 500	Carriage Width (mm): 1200	Carriage Width (mm): 1200
Model: QHCA4-12	Model Description: QH Carriage Adaptor C4 - 1200mm wide	Working Load Limit (WLL) kg: 8000	Load Centre (mm): 600	Carriage Width (mm): 1200	Carriage Width (mm): 1200
Model: QHCA4-16	Model Description: QH Carriage Adaptor C4 - 1600mm wide	Working Load Limit (WLL) kg: 8000	Load Centre (mm): 600	Carriage Width (mm): 1600	Carriage Width (mm): 1600
Model: QHCA4	Model Description: QH Carriage Adaptor C4 - 2400mm wide	Working Load Limit (WLL) kg: 8000	Load Centre (mm): 600	Carriage Width (mm): 2400	Carriage Width (mm): 2400
