FDCS Cable Drum Slippers

Price range: $840.00 through $1,080.00

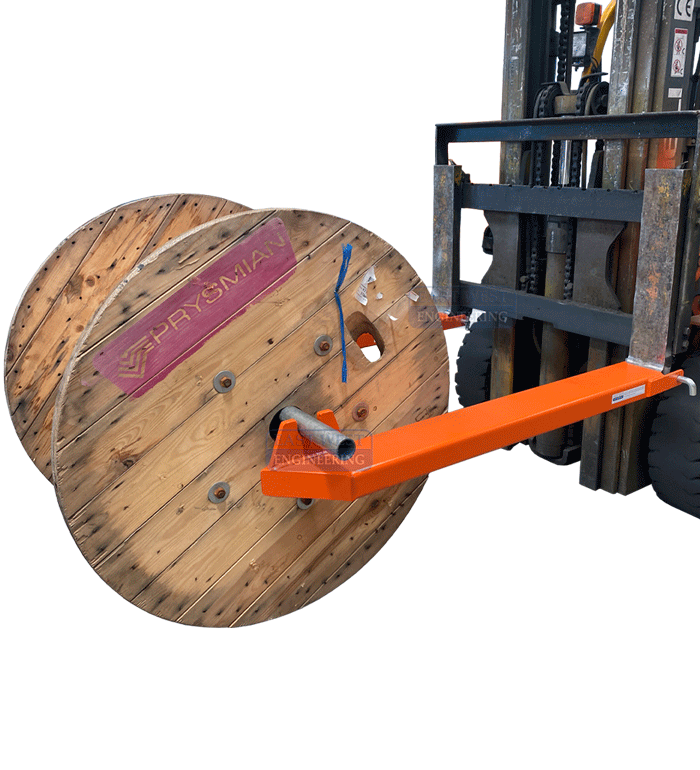

The FDCS Cable Drum Slippers are designed to safely lift, transport cable drums by forklift.

FEATURES:
• Cradle to suit up to 50mm diameter spindles
• Supplied with spindle (1200 long x 48mm DIA)
• Supplied with toggle locking pins for securing to forks
• Supplied as a pair
• 3 models available to suit fork arm size and capacity
• Ideal for heavy or large diameter cable spools
• Enamel paint finish

Fork tines must be measured to ensure correct fit

Slippers used for general usage should be no longer than 167% of the supporting tine length. If the slippers are longer than 167%, then the usage of those slippers shall be restricted to their specified application. All slippers are sold as a pair.

Model Description Price (Excl. GST)
Model: FDCS1-130Description: Cable Drum Slippers (max. tine size 100 x 45mm)Price: $840.00

Add to Quote

Model: FDCS2-130Description: Cable Drum Slippers (max. tine size 130 x 50mm)Price: $930.00

Add to Quote

Model: FDCS3-130Description: Cable Drum Slippers (max. tine size 155 x 55mm)Price: $1,080.00

Add to Quote

ModelModel DescriptionWorking Load Limit (WLL) kgLoad Centre (mm)Length (mm)Max. Tine Size (mm)Min. Tine Length (mm)
Model: FDCS1-130Model Description: Cable Drum Slippers (max. tine size 100 x 45mm)Working Load Limit (WLL) kg: 1000Load Centre (mm): 1200Length (mm): 1300Max. Tine Size (mm): 100 x 45Min. Tine Length (mm): 1220
Model: FDCS2-130Model Description: Cable Drum Slippers (max. tine size 130 x 50mm)Working Load Limit (WLL) kg: 1500Load Centre (mm): 1200Length (mm): 1300Max. Tine Size (mm): 130 x 50Min. Tine Length (mm): 1220
Model: FDCS3-130Model Description: Cable Drum Slippers (max. tine size 155 x 55mm)Working Load Limit (WLL) kg: 2000Load Centre (mm): 1200Length (mm): 1300Max. Tine Size (mm): 155 x 55Min. Tine Length (mm): 1220
* Custom length and pocket size available on request

NOTE: This unit is made to order and non returnable. Please ensure fork tines are measured to ensure correct fit.

The FDCS1 suits a maximum 100x45mm fork size.
For fork sizes above this (even if you have a 2.5T forklift), you must order the next size up.
For example a 2.5T Forklift fitted with 125x45mm fork size suits the FDCS2.

If in doubt, please call East West Engineering for advice on 1800 061 998.
