Price range: $1,400.00 through $1,770.00

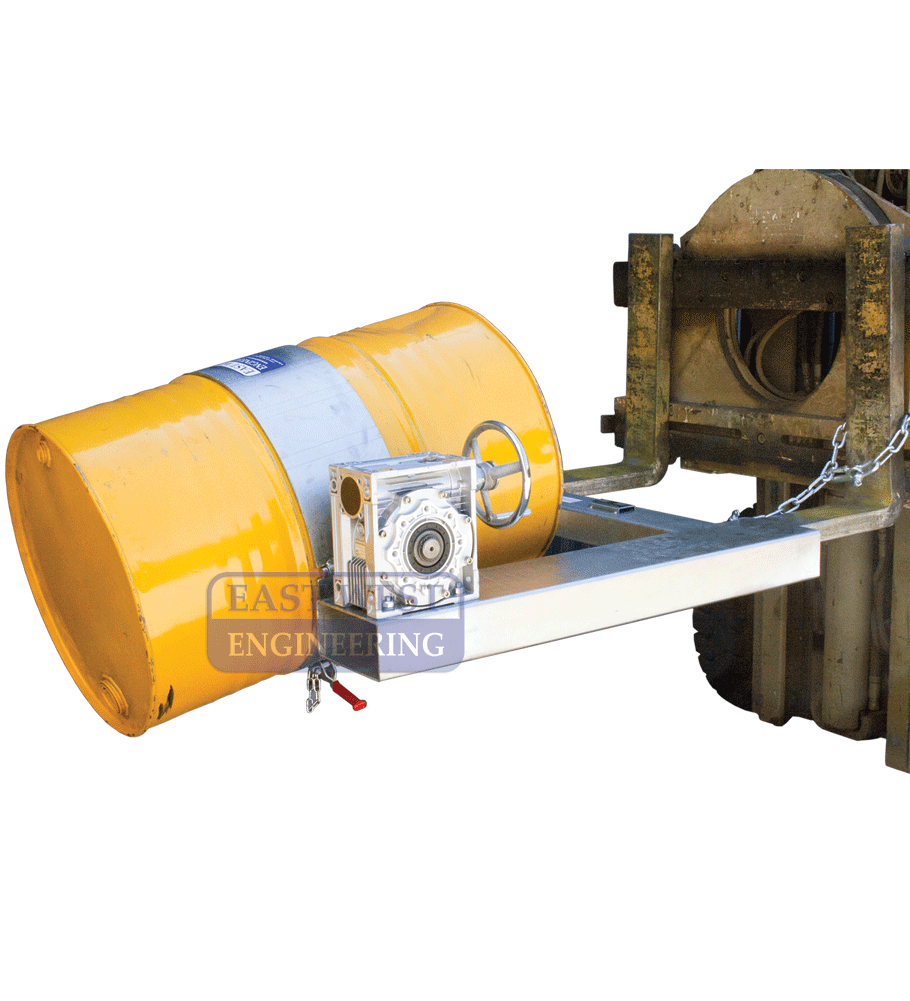

The DER40H Drum Rotator is designed as a fast and economical solution to lift and rotate a 205 litre drum 360 degrees. Rotation of the drum is fully controlled via a large worm-drive gear box which locks the drum in position when operator stops turning the handle, preventing dangerous and uncontrolled movements.
FEATURES:
• Empties a standard 205 litre drums with minimal effort
• Suitable for drum rotation when raised up to chest height
• Rotation carried out via hand wheel
• Belly strap and eccentric lock secures drum in position
• Locking pin prevents accidental release
• Slip-on attachment allows quick connection to a forklift
• Can be coupled with the PBO Plastic Barrel Option
• Zinc finish
Plastic Barrel Option (PBO):
By replacing the standard belly strap, the PBO option allows for plastic drums and barrels, as well as standard steel drums to be handled. The dual woven and chain combination belly straps hold the drum or barrel firmly in position. The PBO option is suitable for a maximum load of 350kg
When Plastic Barrel Option (PBO) is fitted, the Working Load Limit is reduced to 350kg
| Model | Description | Price (Excl. GST) | ||
|---|---|---|---|---|
| Model: DER40H | Description: Drum Rotator - hand wheel | Price: $1,400.00 | ||
| Model: DER40H-PBO | Description: Drum Rotator - hand wheel + PBO | Price: $1,770.00 | ||
| Model | Model Description | Working Load Limit (WLL) kg | Load Centre (mm) | Rotation |
|---|---|---|---|---|
| Model: DER40H | Model Description: Drum Rotator - hand wheel | Working Load Limit (WLL) kg: 400 | Load Centre (mm): 940 | Rotation: 360ø |
| Model: DER40H-PBO | Model Description: Drum Rotator - hand wheel + PBO | Working Load Limit (WLL) kg: 350 | Load Centre (mm): 940 | Rotation: 360ø |
