Price range: $1,960.00 through $2,380.00

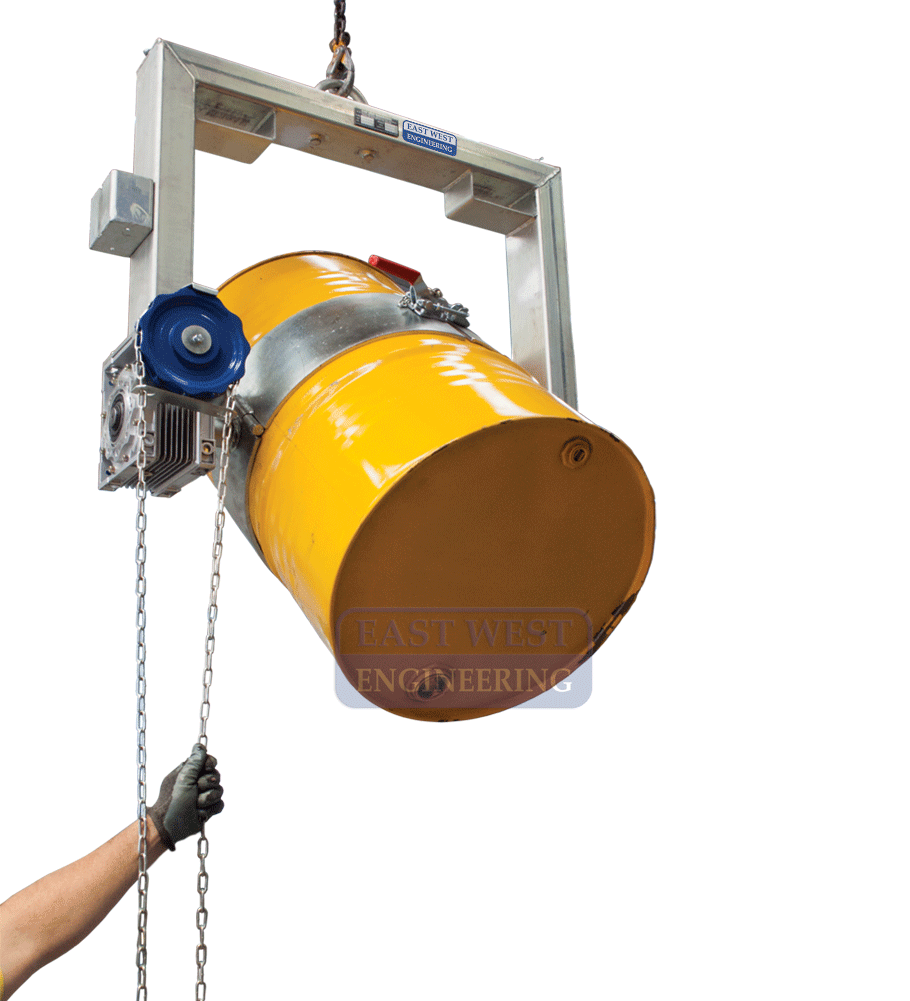

The DBR40C Drum Rotator is designed to lift and rotate a 205 litre steel drum 360° by overhead crane or forklift. Rotation of the drum is controlled throughout the operation by the chain driven gearbox which locks the drum in position when the operator stops pulling the chain, preventing dangerous and uncontrolled movements.
FEATURES:
• Empties a standard 205 litre drum with minimal effort

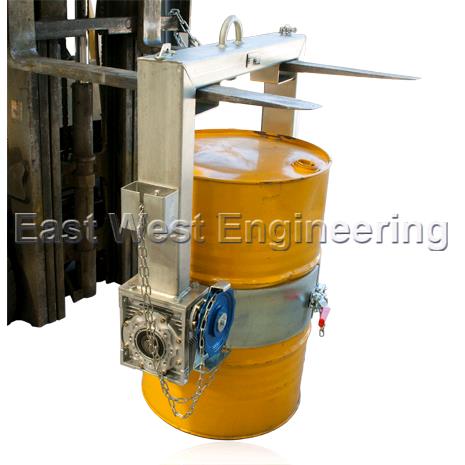

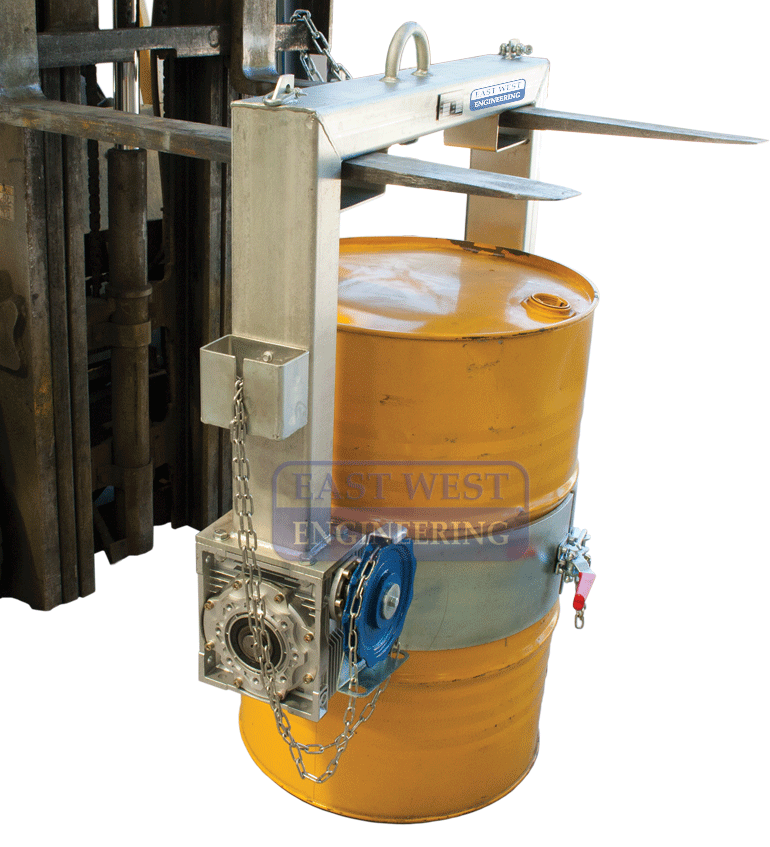

• For use with either overhead crane of forklift
• Suitable for drum rotation up to 3m above ground
• Rotation carried out via hand chain

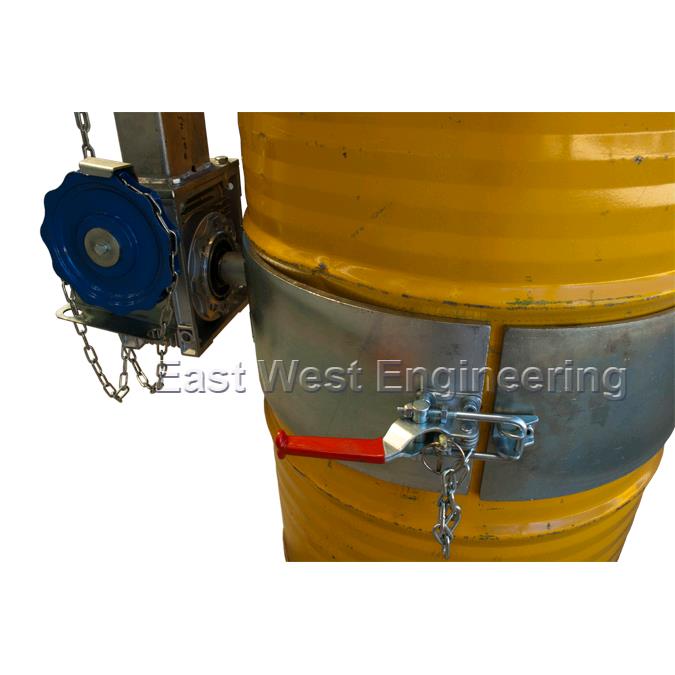

• Belly strap and eccentric lock secures drum in position
• Locking pin prevents accidental release during tipping cycle
• Large worm drive gearbox provides automatic braking
• Can be coupled with the PBO Plastic Barrel Option
• Zinc finish
Plastic Barrel Option (PBO):
By replacing the standard belly strap, the PBO option allows for plastic drums and barrels, as well as standard steel drums to be handled. The dual woven and chain combination belly straps hold the drum or barrel firmly in position. The PBO option is suitable for a maximum load of 350kg
When Plastic Barrel Option (PBO) is fitted, the Working Load Limit is reduced to 350kg
| Model | Description | Price (Excl. GST) | ||
|---|---|---|---|---|
| Model: DBR40C | Description: Crane Drum Rotator - hand chain | Price: $1,960.00 | ||
| Model: DBR40C-PBO | Description: Crane Drum Rotator - hand chain + PBO | Price: $2,380.00 | ||
| Model | Model Description | Working Load Limit (WLL) kg | Rotation | Rotation Shaft CL to Lifting Eye (mm) |
|---|---|---|---|---|
| Model: DBR40C | Model Description: Crane Drum Rotator - hand chain | Working Load Limit (WLL) kg: 400 | Rotation: 360ø | Rotation Shaft CL to Lifting Eye (mm): 810 |
| Model: DBR40C-PBO | Model Description: Crane Drum Rotator - hand chain + PBO | Working Load Limit (WLL) kg: 350 | Rotation: 360ø | Rotation Shaft CL to Lifting Eye (mm): 810 |
