Price range: $2,730.00 through $3,110.00

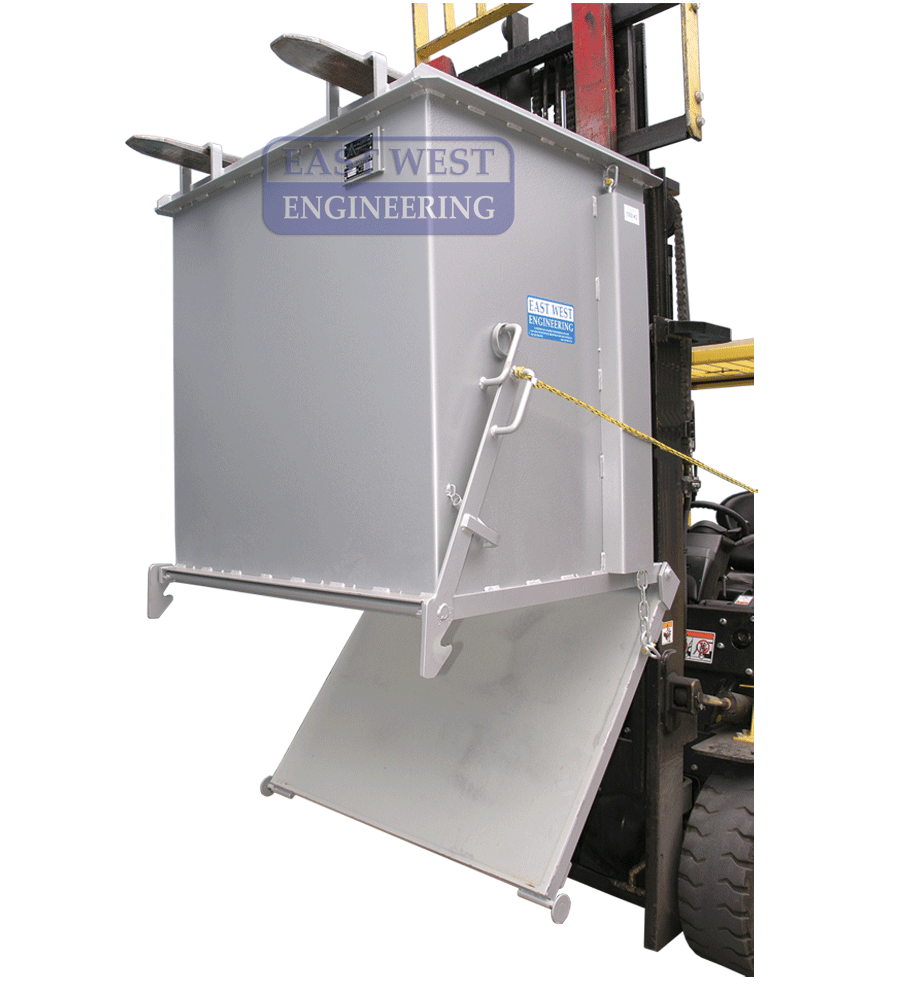

The heavy-duty DBC Drop Bottom Bin is designed for the efficient storage and transfer of waste materials. This bin is emptied via a simple drop bottom base, allowing complete emptying of contents into a larger bin or dump truck. The base is closed by an automatic locking mechanism when bin is lowered to the ground.
FEATURES:
• Drop bottom base allows fast and complete dumping of solid waste
• Heavy-duty 3mm reinforced plate to handle all waste products

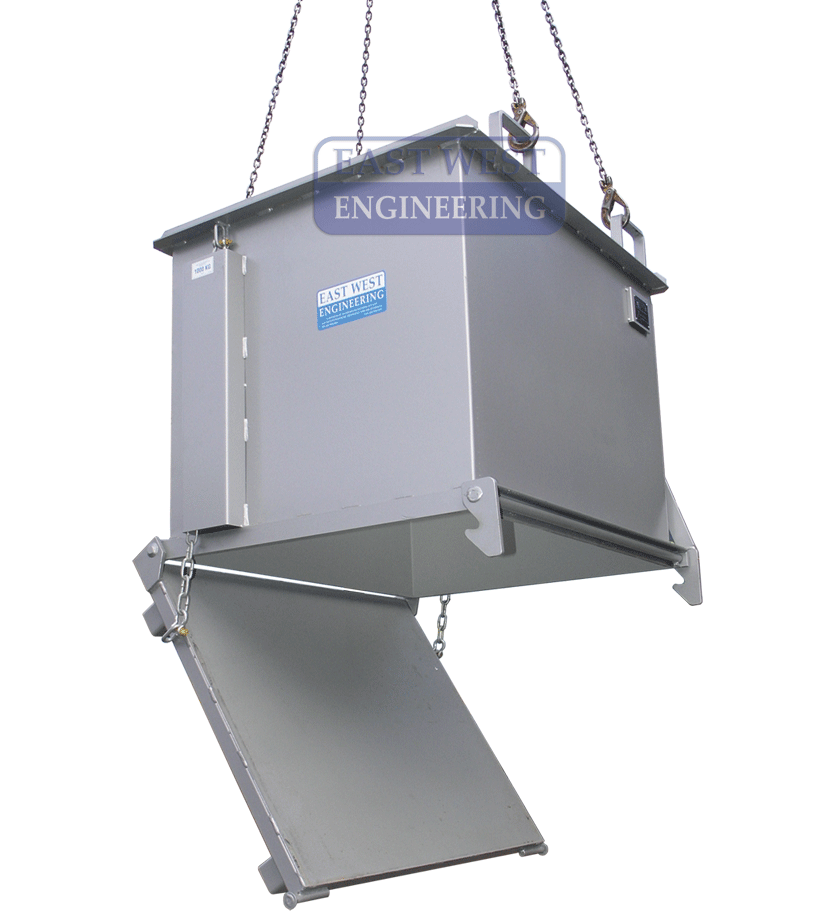

• Easily transported by forklift or overhead crane
• Drop bottom base is released safely from driver’s seat via a pull cord mechanism
• Powerful shock absorbing system removes all impact from the forklift or crane during emptying
• Crane lugs fitted as standard

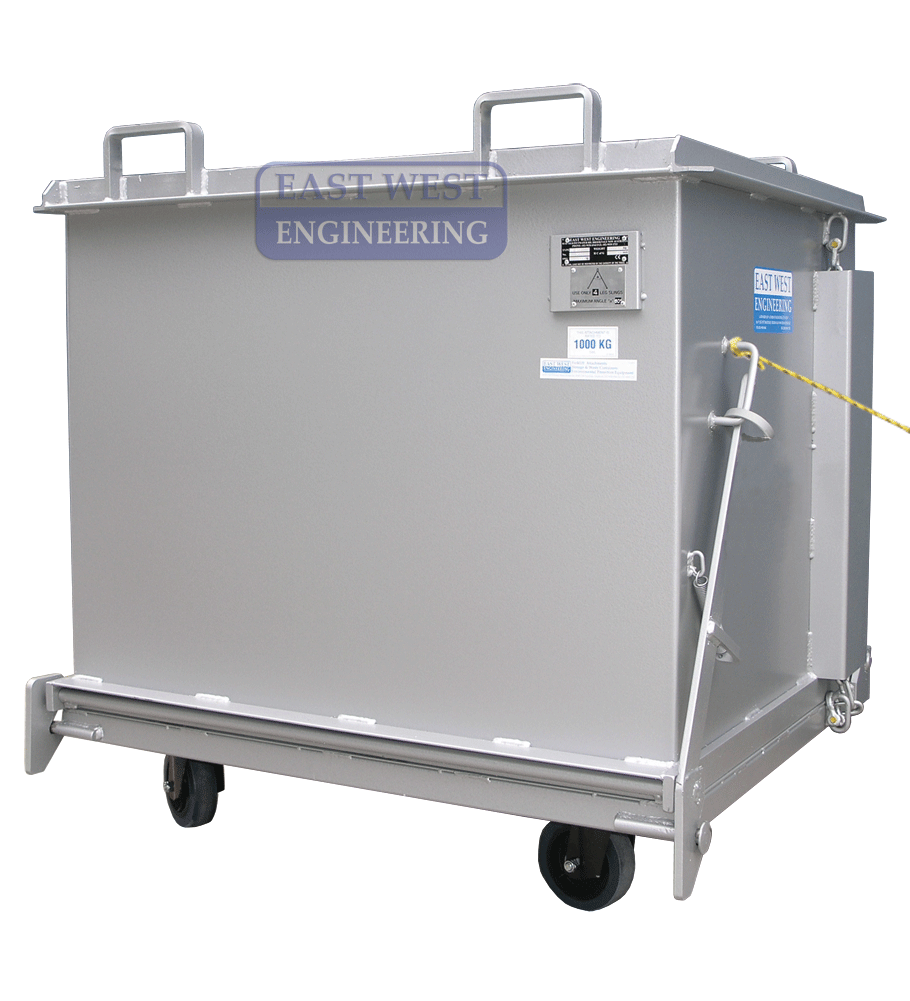

• Optional wheel kit available for supply
• Enamel paint finish
Due to transport safety requirements wheels are no longer pre-fitted. If ordered, optional wheel kits are supplied for fitment onsite, not fitted.
| Model | Description | Price (Excl. GST) | ||
|---|---|---|---|---|
| Model: DBC500 | Description: Drop Bottom Bin - 0.5cu.m | Price: $2,730.00 | ||
| Model: DBC800 | Description: Drop Bottom Bin - 0.8cu.m | Price: $2,920.00 | ||
| Model: DBC1100 | Description: Drop Bottom Bin - 1.1cu.m | Price: $3,110.00 | ||
| Model | Model Description | Working Load Limit (WLL) kg | Capacity (cu.m) | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|---|---|
| Model: DBC500 | Model Description: Drop Bottom Bin - 0.5cu.m | Working Load Limit (WLL) kg: 1000 | Capacity (cu.m): 0.5 | Length (mm): 1200 | Width (mm): 1025 | Height (mm): 745 |
| Model: DBC800 | Model Description: Drop Bottom Bin - 0.8cu.m | Working Load Limit (WLL) kg: 1000 | Capacity (cu.m): 0.5 | Length (mm): 1200 | Width (mm): 1025 | Height (mm): 1045 |
| Model: DBC1100 | Model Description: Drop Bottom Bin - 1.1cu.m | Working Load Limit (WLL) kg: 1000 | Capacity (cu.m): 1.1 | Length (mm): 1200 | Width (mm): 1025 | Height (mm): 1345 |
