Price range: $143.00 through $1,830.00

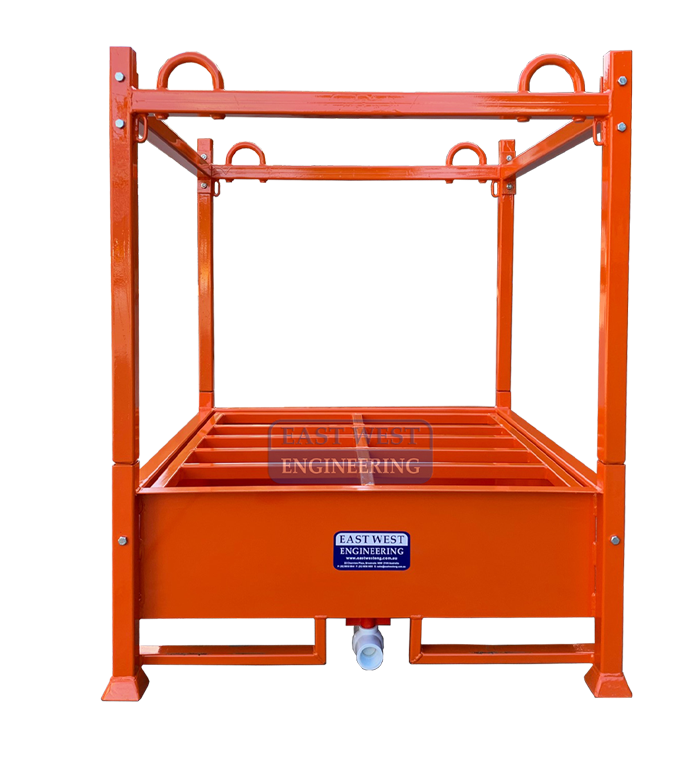

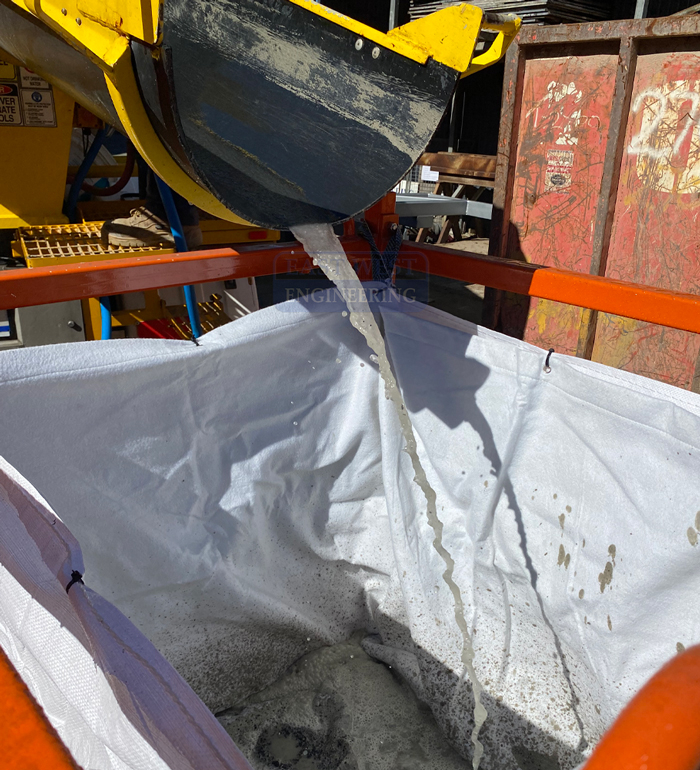

The CSS115 Filtration Unit is designed for the safe and convenient handling of concrete washwater by dealing with the harmful waste on site. The purpose constructed filtration bag is manufactured from a 300gsm, 900mm cube non-woven geotextile fabric inner layer with a bulk bag protective external. Sand, gravel and suspended concrete particles as fine as 80 microns are separated from the concrete slurry generated from the washout of concrete trucks and other equipment onsite and from saw cutting, core drilling, grinding and grooving concrete. Excess water passes through the filter bag and is captured in the holding tank below for testing and treatment. This unit can also be used as a dewatering station for filtering sediment laden water on sites that need to control the amount of sediment or pollution runoff.
FEATURES:
• Allows best practice and EPA compliance for handling concrete slurry onsite

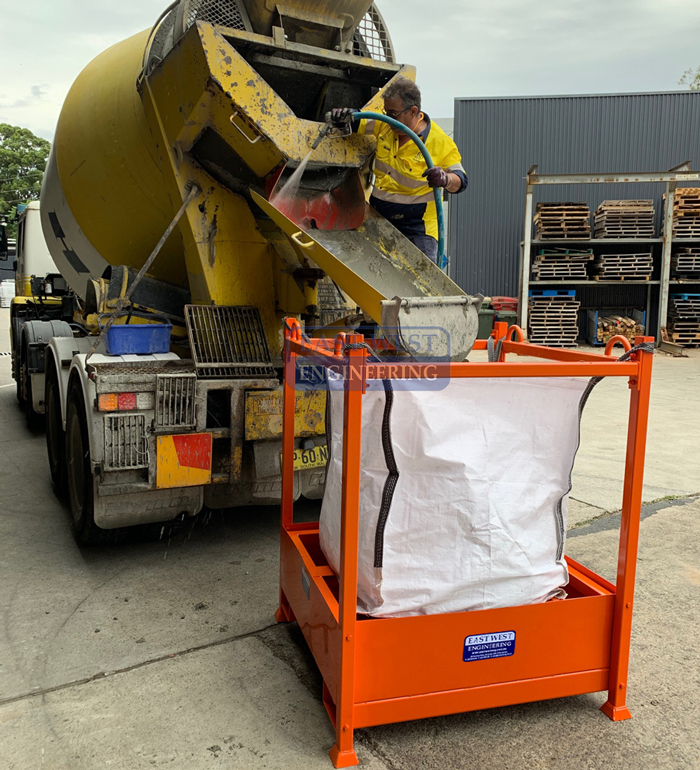

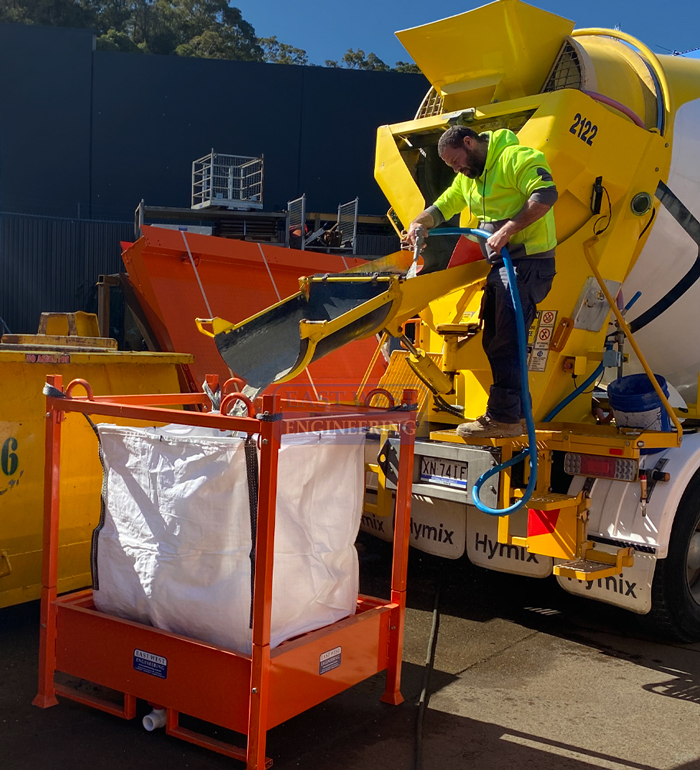

• Suits concrete slurry from truck & equip washout, concrete cutting, coring & grinding
• Can be used for pumping and filtering sediment from silt laden water
• Filters and separates washout particles to 80 microns from slurry water

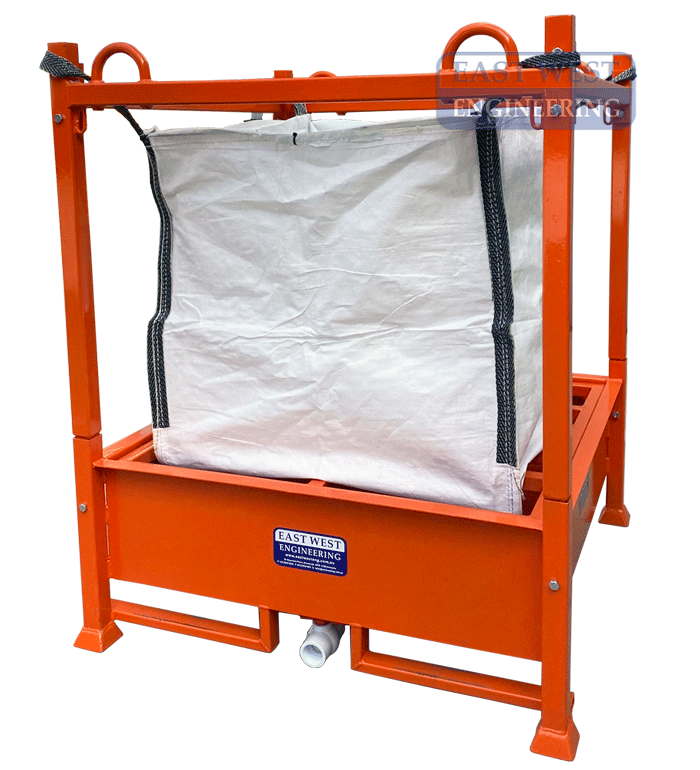

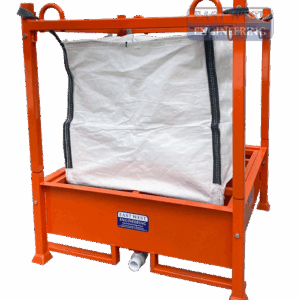

• Filter bag is suspended from frame for easy removal when full by crane or forklift
• Supplied filter bag (CSS115FB) can washout up to 80 trucks before replacing

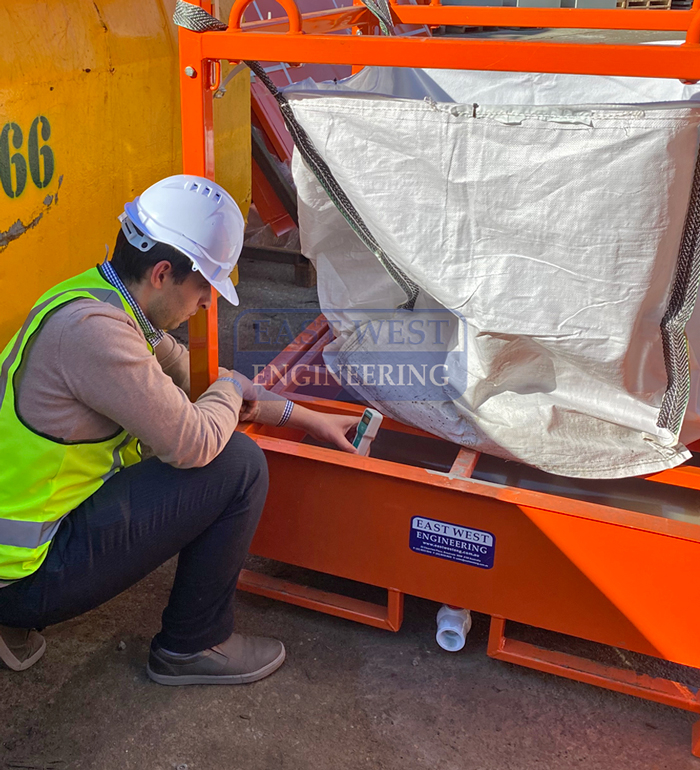

• Wastewater in tank can be tested and treated without the need for off-site processing
• 50mm valve fitted standard
• Fork guides and crane lugs fitted for easy relocation around the site
• Enamel paint finish

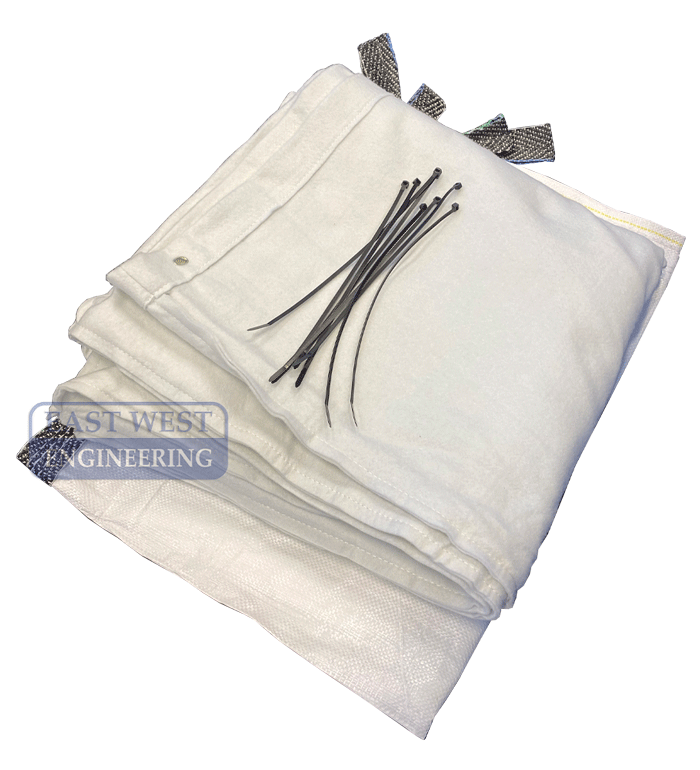

1 Filtration Bag (Geofabric Bag + External Bulk Bag + Cable Ties) supplied standard with a CSS115 Filtration Unit. Also available for reorder CSS115FB.
| Model | Description | Price (Excl. GST) | ||
|---|---|---|---|---|
Model:  CSS115 | Description: Filtration Unit | Price: $1,830.00 | ||

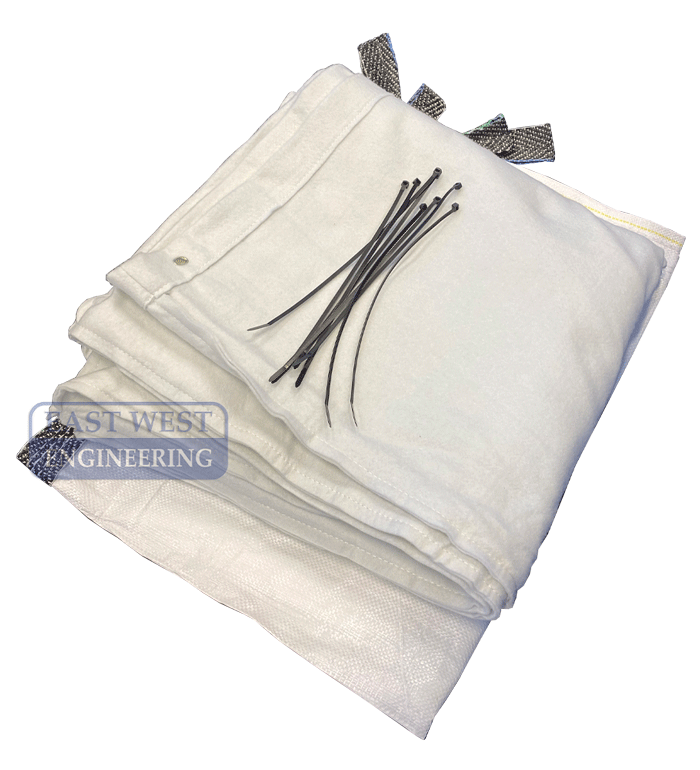

Model:  CSS115FB | Description: Filtration Bag Kit (Incl Bulk Bag + Geofab Bag + Cable Ties) | Price: $143.00 | ||
| Model | Model Description | Working Load Limit (WLL) kg | Capacity (cu.m) | Sump Capacity (L) |
|---|---|---|---|---|
| Model: CSS115 | Model Description: Filtration Unit | Working Load Limit (WLL) kg: 1500 | Capacity (cu.m): 0.6 | Sump Capacity (L): 0.3 |
| Model: CSS115FB | Model Description: Filtration Bag Kit (Incl Bulk Bag + Geofab Bag + Cable Ties) | Working Load Limit (WLL) kg: | Capacity (cu.m): 0.6 | Sump Capacity (L): |
