Price range: $1,650.00 through $3,520.00

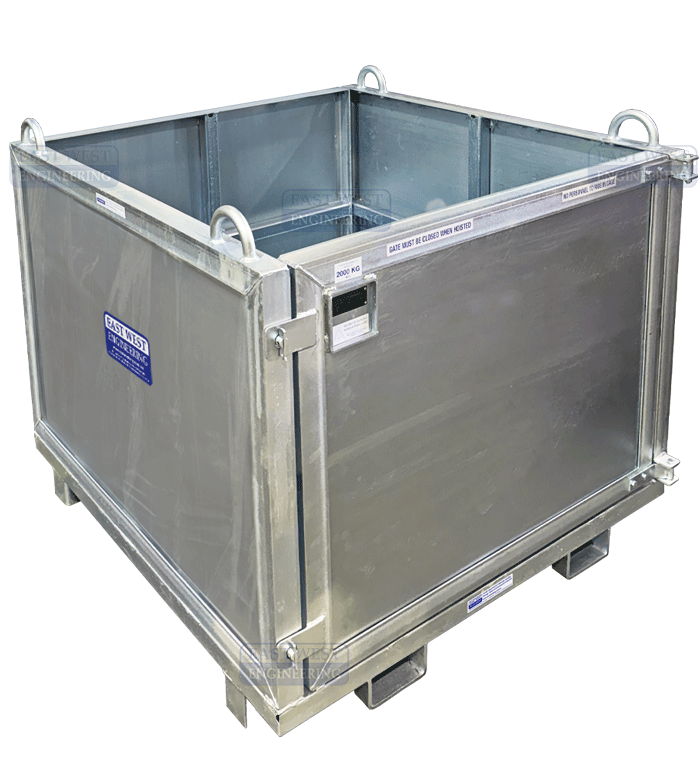

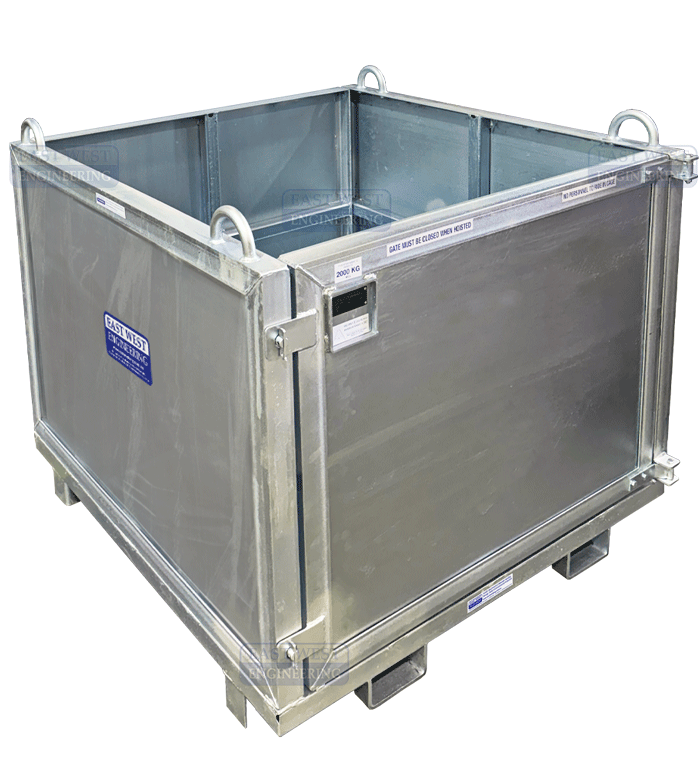

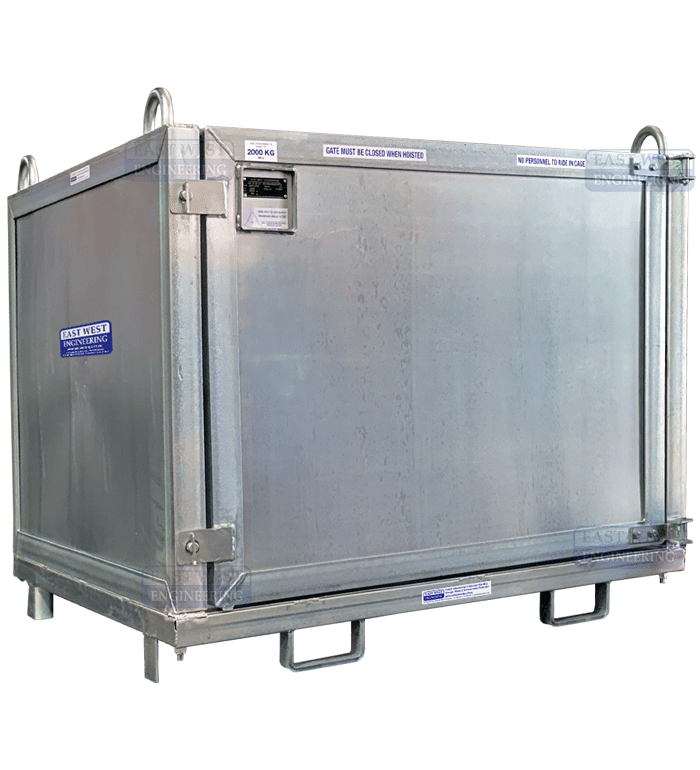

The CSPN-SS Sheet Side Goods Cage has been designed to safely store and transport loose or palletised goods by crane or forklift.
FEATURES:
• Suitable for use with loose or palletised goods
• Available in 1T and 2T capacity models
• Suits a 1200mm square pallet
• Sheet sides provide additional load protection

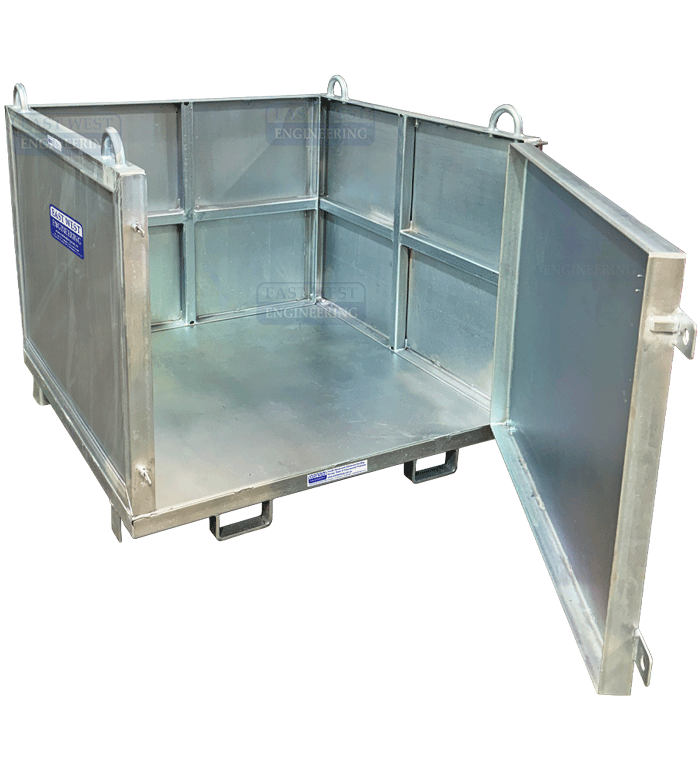

• Fully opening front gate for easy loading and unloading of palletised goods
• Stacking feet allow cages to be stacked 3 high when empty or 2 high when loaded
• Fitted with 4 point lift crane lugs and fork stirrups

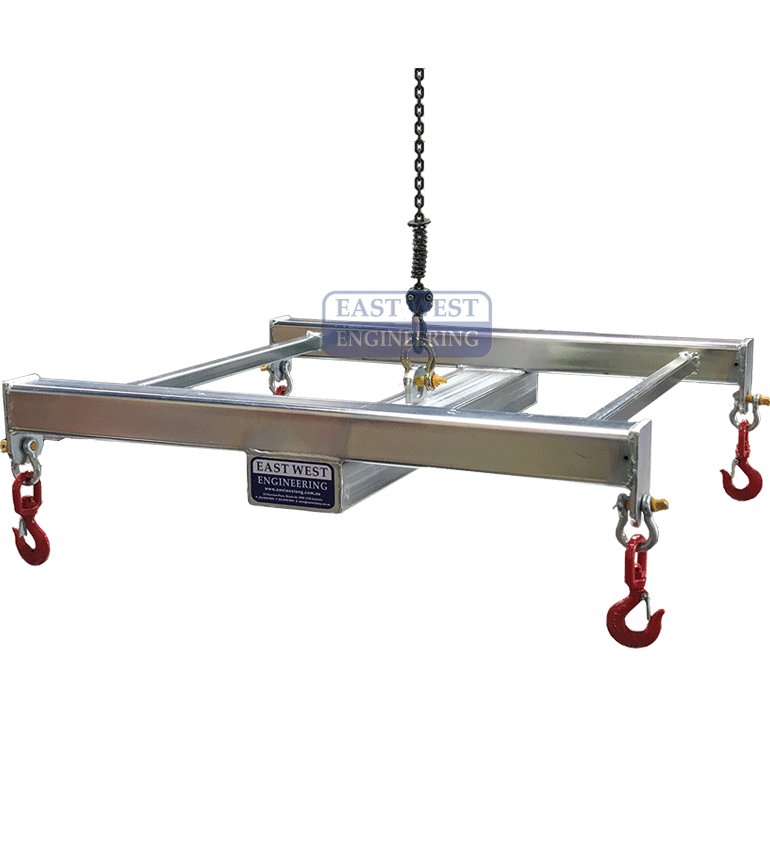

• Optional Lifting Frame (CSPN-CL) enables single point lifting where head height is an issue
• Also available in model with mesh sides (CSPN)
• Zinc finish
Supplied standard as a fully assembled unit
Chains not included.
EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF PRODUCT COPIES
| Model | Description | Price (Excl. GST) | ||
|---|---|---|---|---|
Model:  CSPN-1TSS | Description: Goods Cage - 1T (Sheet Metal sides) | Price: $2,710.00 | ||
Model:  CSPN-CL | Description: Optional Lifting Frame | Price: $1,650.00 | ||
| Model: CSPN-2TSS | Description: Goods Cage - 2T (Sheet Metal sides) | Price: $3,520.00 | ||
| Model | Model Description | Working Load Limit (WLL) kg | Opening (mm) | Hook Centres (mm) |
|---|---|---|---|---|
| Model: CSPN-1TSS | Model Description: Goods Cage - 1T (Sheet Metal sides) | Working Load Limit (WLL) kg: 1000 | Opening (mm): 1250(w) | Hook Centres (mm): |
| Model: CSPN-CL | Model Description: Optional Lifting Frame | Working Load Limit (WLL) kg: 2300 | Opening (mm): | Hook Centres (mm): 1300 x 1080mm |
| Model: CSPN-2TSS | Model Description: Goods Cage - 2T (Sheet Metal sides) | Working Load Limit (WLL) kg: 2000 | Opening (mm): 1220(w) | Hook Centres (mm): |
