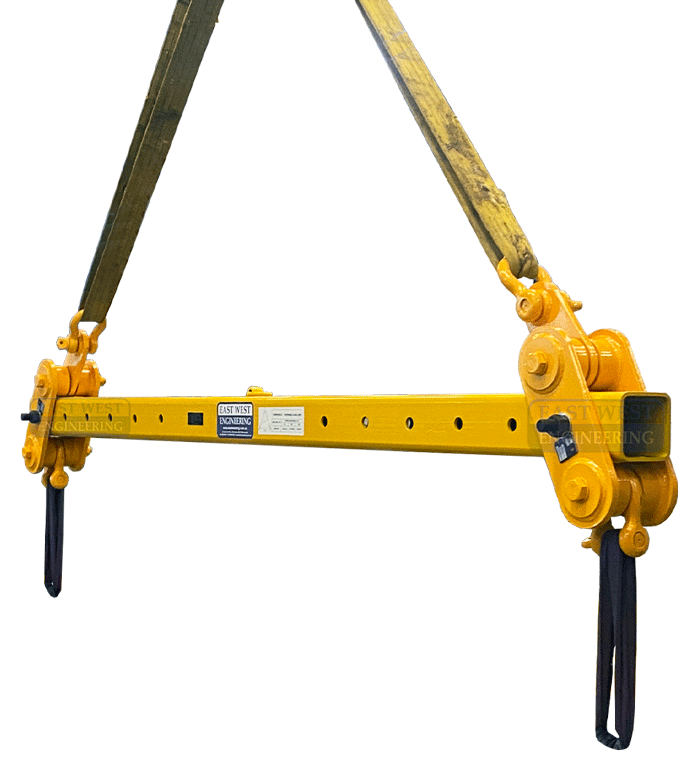

Name: CSMP Multi Position Spreader Bar - 20, 48 &amp; 100T
SKU: CSMP_Main
Availability: InStock

Model	Description	Price (Excl. GST)
Model: CSMP20X3.3	Description: WLL 20T x 3.3m Length	Price: $7,980.00	Compare Product	Add to Quote
Model: CSMP20X6	Description: WLL 20T x 6m Length	Price: $8,790.00	Compare Product	Add to Quote
Model: CSMP20X8	Description: WLL 20T x 8m Length	Price: $9,380.00	Compare Product	Add to Quote
Model: CSMP48X3.3	Description: WLL 48T x 3.3m Length	Price: $11,330.00	Compare Product	Add to Quote
Model: CSMP48X6	Description: WLL 48T x 6m Length	Price: $12,430.00	Compare Product	Add to Quote
Model: CSMP48X8	Description: WLL 48T x 8m Length	Price: $13,200.00	Compare Product	Add to Quote
Model: CSMP100X3.3	Description: WLL 100T x 3.3m Length	Price: $21,600.00	Compare Product	Add to Quote
Model: CSMP100X6	Description: WLL 100T x 6m Length	Price: $24,200.00	Compare Product	Add to Quote
Model: CSMP100X8	Description: WLL 100T x 8m Length	Price: $26,690.00	Compare Product	Add to Quote

Model	Model Description	Working Load Limit (WLL) kg	Length (mm)	No. of Lift Positions	Min. Lift Centre (mm)	Max. Lift Centre (mm)
Model: CSMP20X3.3	Model Description: WLL 20T x 3.3m Length	Working Load Limit (WLL) kg: 20,000	Length (mm): 3300	No. of Lift Positions: 6	Min. Lift Centre (mm): 1000	Max. Lift Centre (mm): 3000
Model: CSMP20X6	Model Description: WLL 20T x 6m Length	Working Load Limit (WLL) kg: 20,000	Length (mm): 6000	No. of Lift Positions: 8	Min. Lift Centre (mm): 1500	Max. Lift Centre (mm): 5700
Model: CSMP20X8	Model Description: WLL 20T x 8m Length	Working Load Limit (WLL) kg: 20,000	Length (mm): 8000	No. of Lift Positions: 11	Min. Lift Centre (mm): 1700	Max. Lift Centre (mm): 7700
Model: CSMP48X3.3	Model Description: WLL 48T x 3.3m Length	Working Load Limit (WLL) kg: 48,000	Length (mm): 3300	No. of Lift Positions: 6	Min. Lift Centre (mm): 1000	Max. Lift Centre (mm): 3000
Model: CSMP48X6	Model Description: WLL 48T x 6m Length	Working Load Limit (WLL) kg: 48,000	Length (mm): 6000	No. of Lift Positions: 8	Min. Lift Centre (mm): 1500	Max. Lift Centre (mm): 5700
Model: CSMP48X8	Model Description: WLL 48T x 8m Length	Working Load Limit (WLL) kg: 48,000	Length (mm): 8000	No. of Lift Positions: 11	Min. Lift Centre (mm): 1700	Max. Lift Centre (mm): 7700
Model: CSMP100X3.3	Model Description: WLL 100T x 3.3m Length	Working Load Limit (WLL) kg: 100,000	Length (mm): 3300	No. of Lift Positions: 6	Min. Lift Centre (mm): 1000	Max. Lift Centre (mm): 3000
Model: CSMP100X6	Model Description: WLL 100T x 6m Length	Working Load Limit (WLL) kg: 100,000	Length (mm): 6000	No. of Lift Positions: 8	Min. Lift Centre (mm): 1500	Max. Lift Centre (mm): 5700
Model: CSMP100X8	Model Description: WLL 100T x 8m Length	Working Load Limit (WLL) kg: 100,000	Length (mm): 8000	No. of Lift Positions: 11	Min. Lift Centre (mm): 1700	Max. Lift Centre (mm): 7700
