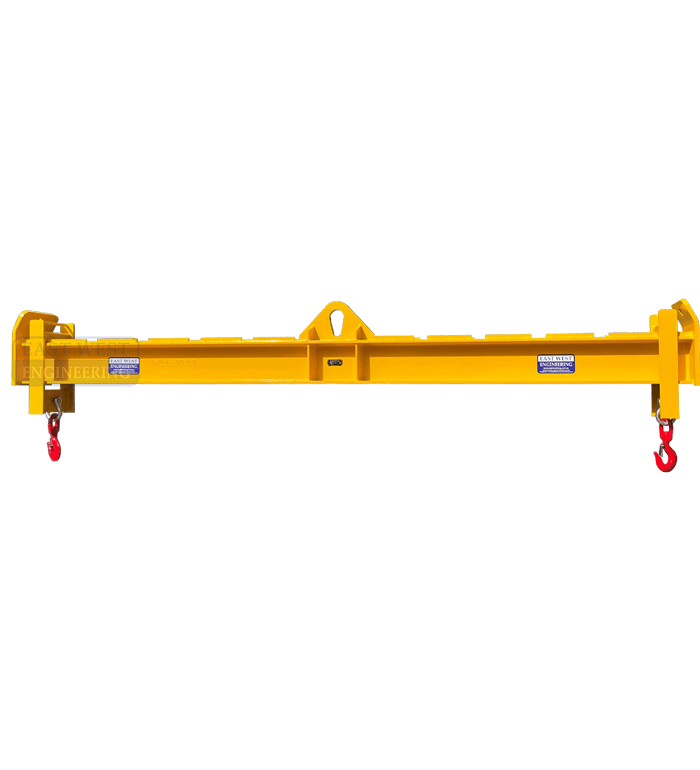

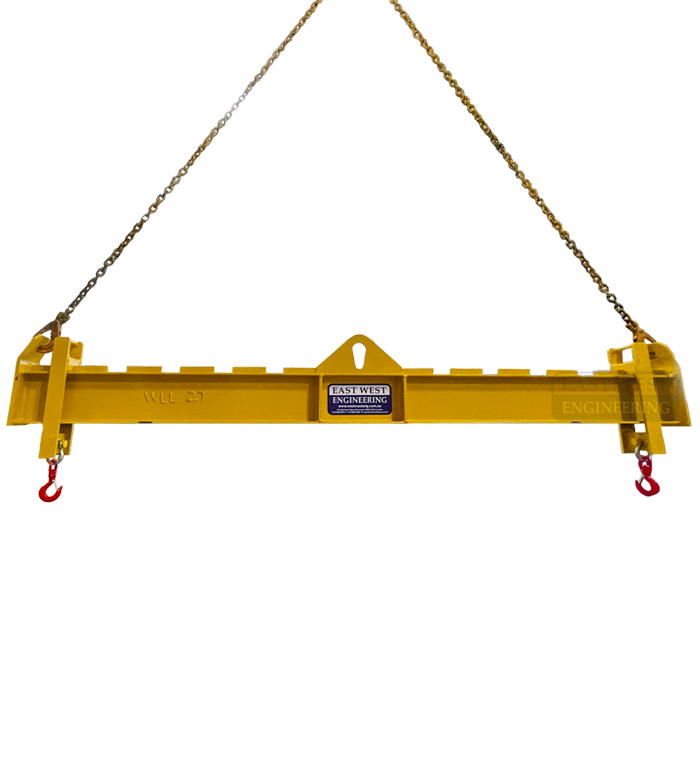

CSB Spreader Beam

Price range: $850.00 through $12,650.00

The CSB Spreader Beams are designed in a range of capacities and lengths to suit any lifting application required by overhead crane.

FEATURES:
• Supplied standard with 5 lifting position
• Fitted with 2 safety swivel hooks
• Custom lengths and capacity available on request
• Enamel paint finish

Choose the Working Load Limit and beam length to suit your application.

EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF COPY PRODUCTS

Model Description Price (Excl. GST)
Model: CSB2X1Description: Spreader Beam - 2T x 1m longPrice: $850.00

Add to Quote

Model: CSB2X2Description: Spreader Beam - 2T x 2m longPrice: $1,180.00

Add to Quote

Model: CSB3X3Description: Spreader Beam - 3T x 3m longPrice: $1,540.00

Add to Quote

Model: CSB5X4Description: Spreader Beam - 5T x 4m longPrice: $3,720.00

Add to Quote

Model: CSB10X4Description: Spreader Beam - 10T x 4m longPrice: $6,220.00

Add to Quote

Model: CSB10X7Description: Spreader Beam - 10T x 7m longPrice: $12,650.00

Add to Quote

ModelModel DescriptionWorking Load Limit (WLL) kgSpread Range (mm)
Model: CSB2X1Model Description: Spreader Beam - 2T x 1m longWorking Load Limit (WLL) kg: 2000Spread Range (mm): 160 - 950
Model: CSB2X2Model Description: Spreader Beam - 2T x 2m longWorking Load Limit (WLL) kg: 2000Spread Range (mm): 590 - 2000
Model: CSB3X3Model Description: Spreader Beam - 3T x 3m longWorking Load Limit (WLL) kg: 3000Spread Range (mm): 710 - 3000
Model: CSB5X4Model Description: Spreader Beam - 5T x 4m longWorking Load Limit (WLL) kg: 5000Spread Range (mm): 1140 - 4000
Model: CSB10X4Model Description: Spreader Beam - 10T x 4m longWorking Load Limit (WLL) kg: 10,000Spread Range (mm): 1130 - 4000
Model: CSB10X7Model Description: Spreader Beam - 10T x 7m longWorking Load Limit (WLL) kg: 10,000Spread Range (mm): 1730 - 7000
Custom lengths and capacities available on request.
Working Load Limit is based on use as a lifting or spreader beam
