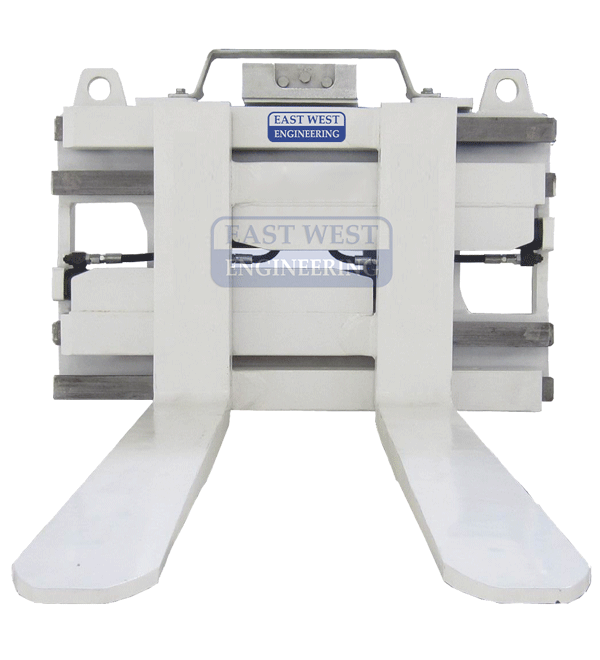

CJC Sideshifting Fork Clamp

CJC Sideshifting Fork Clamp

The CJC Sideshifting Fork Clamp is designed to increased the versatility of a forklift truck to handle a wide range of loads with varying shape and size that require fork positioning and/or clamping function to handle.

FEATURES:
• Used to hydraulically position forks for loads with frequently changing widths
• Clamping function allows handling of awkward loads such as barrels, bins, tyres, crates & bales
• Sideshift function enables the forklift to move its load from side to side for ease in stacking, loading & unloading
• Lateral sliding arm design for smooth clamping and sideshifting function
• Available in a wide range of openings and fork lengths
• Commonly used in industries such as recycling, logistics, warehouse and manufacturing

View Pricing

Two additional hydraulic circuits required. Opening range refers to the distance between the forks inner tips. Hoses not included. Please contact the forklift manufacturer for the residual capacity of attachment.

SKU: CJC_Main Categories: , , ,

You may also like…

Model Description Price (Excl. GST)
Model: CJC23D-B005Description: Fork Clamp - C2, 1220mm fork lengthPrice: POA

Add to Quote

Model: CJC23D-B006Description: Fork Clamp - C2, 1200mm fork lengthPrice: POA

Add to Quote

Model: CJC23D-B007Description: Fork Clamp - C2, 1110mm fork lengthPrice: POA

Add to Quote

Model: CJC23D-C001Description: Fork Clamp - C3, 1066mm fork lengthPrice: POA

Add to Quote

Model: CJC23D-C007Description: Fork Clamp - C3, 1100mm fork lengthPrice: POA

Add to Quote

ModelModel DescriptionFrame Width (mm)O/A Height (mm)
Model: CJC23D-B005Model Description: Fork Clamp - C2, 1220mm fork lengthFrame Width (mm): 1212O/A Height (mm): 821
Model: CJC23D-B006Model Description: Fork Clamp - C2, 1200mm fork lengthFrame Width (mm): 962O/A Height (mm): 821
Model: CJC23D-B007Model Description: Fork Clamp - C2, 1110mm fork lengthFrame Width (mm): 1212O/A Height (mm): 766
Model: CJC23D-C001Model Description: Fork Clamp - C3, 1066mm fork lengthFrame Width (mm): 1016O/A Height (mm): 821
Model: CJC23D-C007Model Description: Fork Clamp - C3, 1100mm fork lengthFrame Width (mm): 1212O/A Height (mm): 766

Have a question about this product?
For detailed specifications please complete the form below and our sales team will be in touch shortly.

Product Enquiry

This field is for validation purposes and should be left unchanged.
Name
