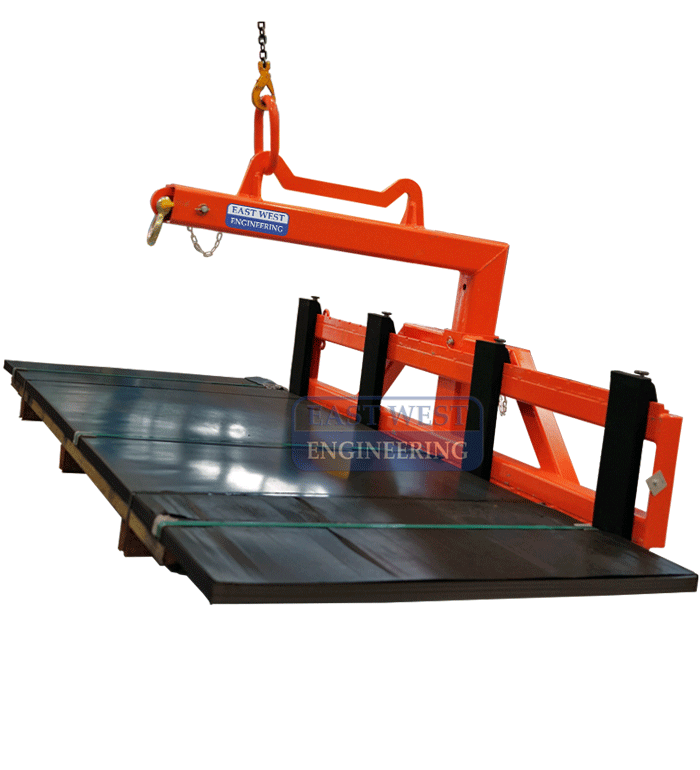

The CHW150 Wide Load Pallet Hook is designed & certified in accordance with Australian Standard AS 1418.1 to safely handle palletised goods when being lifted by overhead crane.
FEATURES:

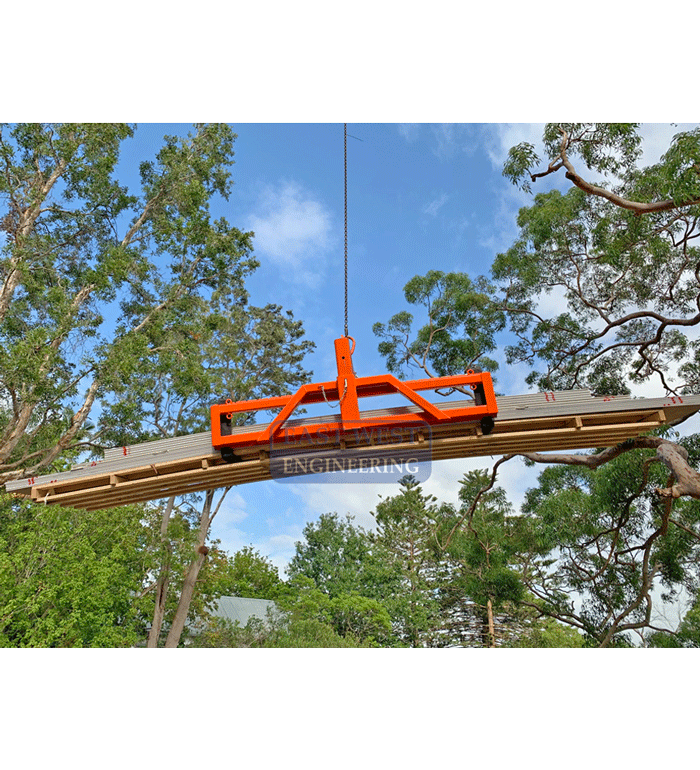

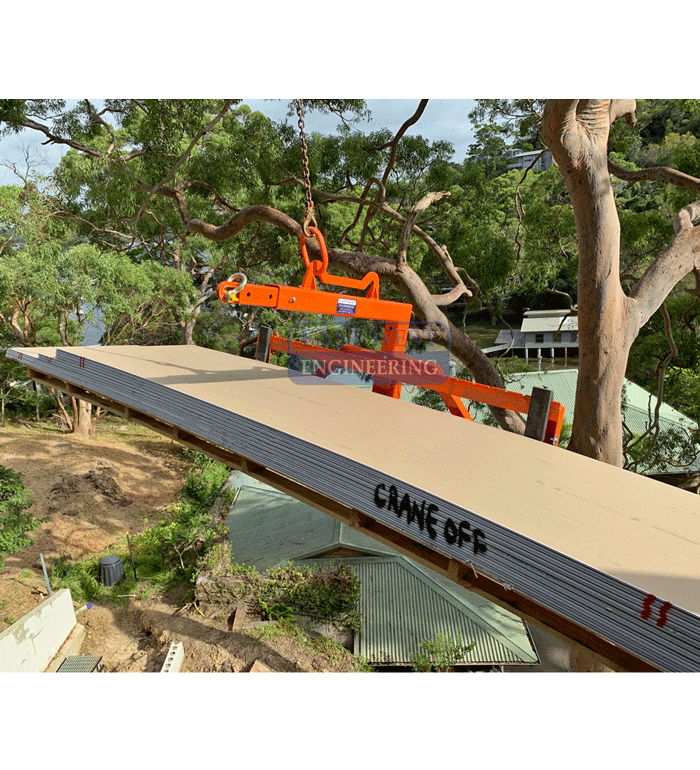

• Used for lifting wide loads such as plasterboard, timber and roof sheeting
• Adjustable body height and fork tine width to suit varying load sizes
• Load is balanced by moving the lifting ring between the loaded or unloaded positions

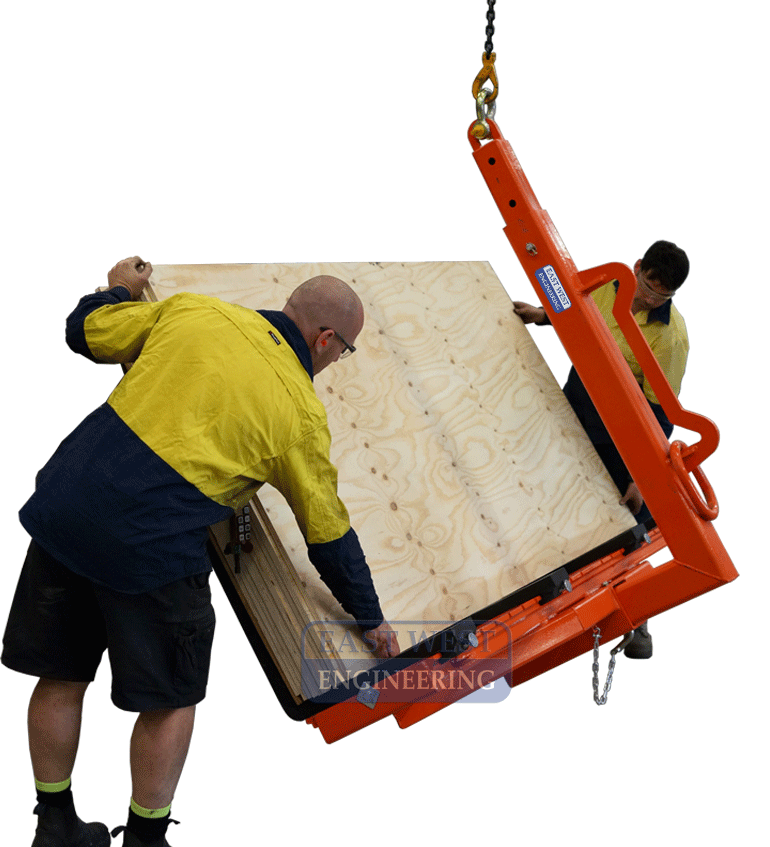

• Additional lug used for inverting load to ease unloading of long materials
• Made with high tensile steel for maximum strength

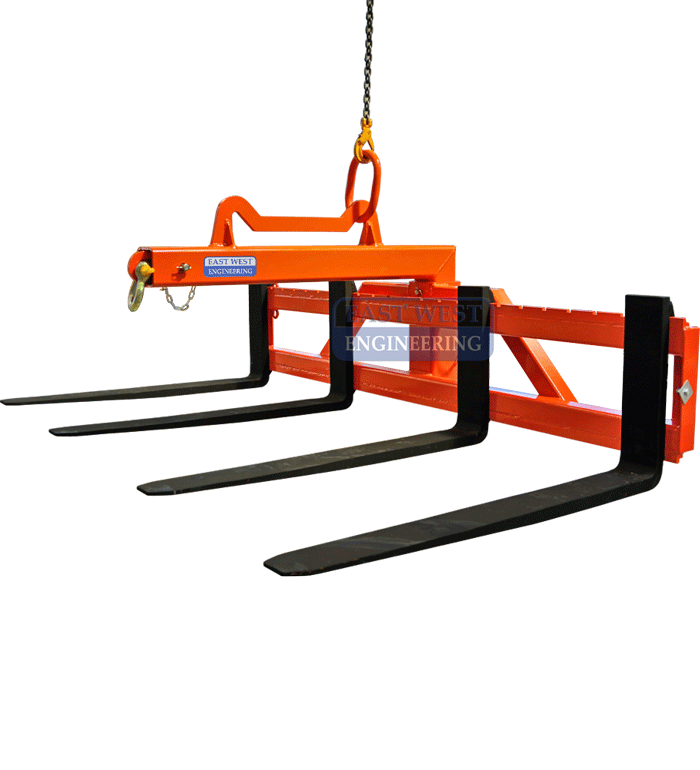

• Comes standard with two fork arms. Additional 2 fork arms can be added on request
• Ideal for the manufacturing, transport and construction industry
• Enamel paint finish
EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF COPY PRODUCTS
| Model | Description | Price (Excl. GST) | ||
|---|---|---|---|---|
| Model: CHW150 | Description: Wide Load Pallet Hook | Price: $4,640.00 | ||
| Model | Model Description | Working Load Limit (WLL) kg | Load Centre (mm) | Internal Clearance (mm) |
|---|---|---|---|---|
| Model: CHW150 | Model Description: Wide Load Pallet Hook | Working Load Limit (WLL) kg: 1500 | Load Centre (mm): 600 | Internal Clearance (mm): 515-715 |
