$3,150.00

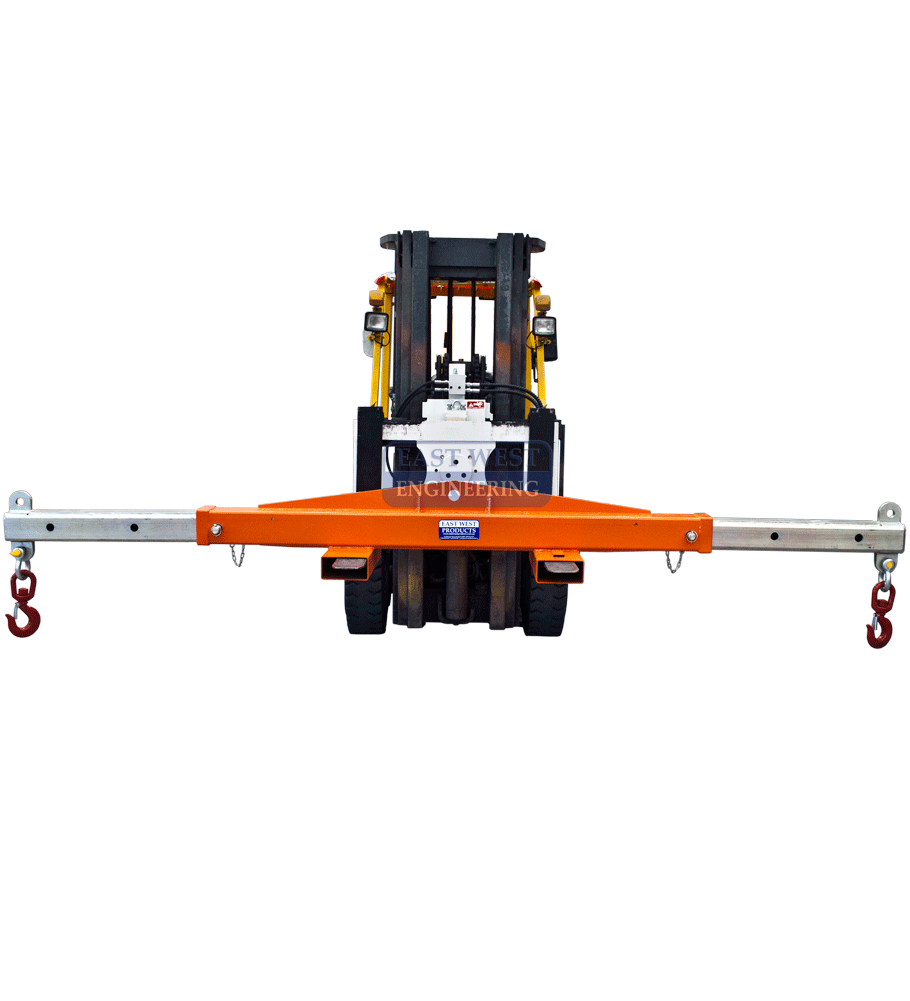

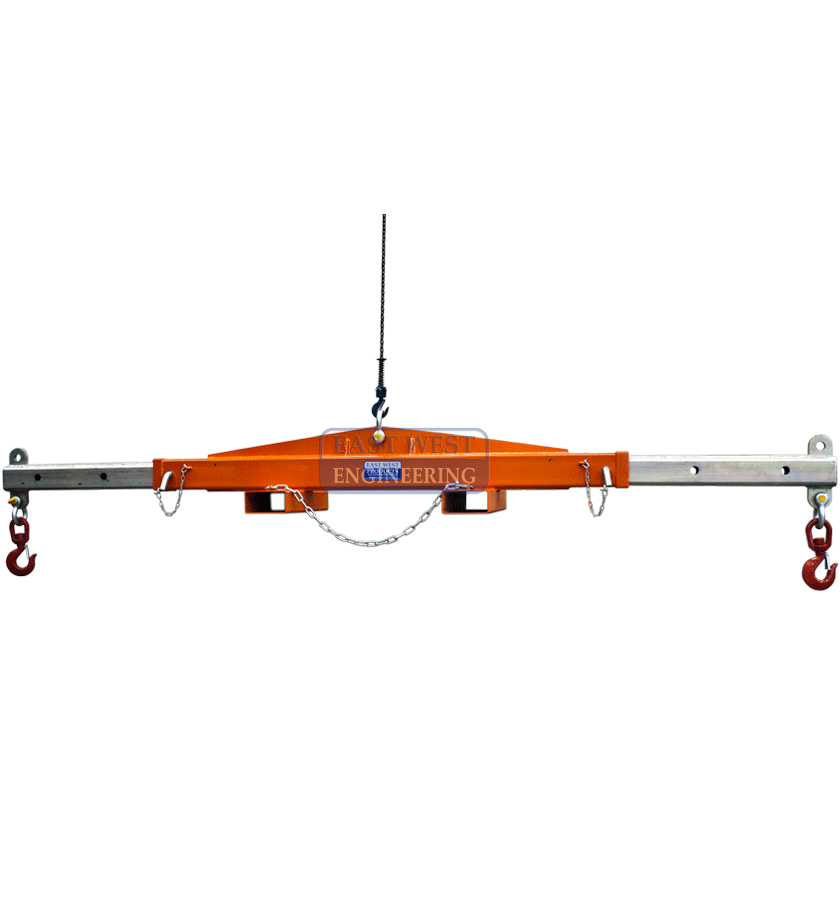

The CFM2439 Spreader Beam is a unique multitasking beam designed to lift long loads by overhead crane or forklift.. When used by crane, loads can be lifted via the centre single hook point (as a Lifting Beam), or end lifted using a 2 leg chain sling (as a Spreader Beam). If lifting by forklift, the 600mm long slipper pockets allow fast and safe connection to the truck.
FEATURES:
• Multi-tasking lifting / spreader beam
• Load connection points are adjustable to 3 positions by moving the extendable arm
• Safety pins used to securely lock extendable arm in position
• Supplied standard with 2 safety swivel hooks
• Certified to the relevant Australian Standards
• Zinc finish on extendable arms, enamel paint finish on main body
EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF COPY PRODUCTS
| Model | Description | Price (Excl. GST) | ||
|---|---|---|---|---|
Model:  CFM2439 | Description: 10T Spreader Beam | Price: $3,150.00 | ||
| Model | Model Description | Working Load Limit (WLL) kg | Fully Retracted (LC@2210mm) kg | Middle Position (LC@2970mm) kg | Fully Extended (LC@3730mm) kg |
|---|---|---|---|---|---|
| Model: CFM2439 | Model Description: 10T Spreader Beam | Working Load Limit (WLL) kg: 10,000 | Fully Retracted (LC@2210mm) kg: 5600 | Middle Position (LC@2970mm) kg: 2900 | Fully Extended (LC@3730mm) kg: 1400 |
| Rated Capacity (RC) | |||
| when used as | Fully Retracted (LC@2380mm) |
Middle Position (LC@3140mm) |
Fully Extended (LC@3900mm) |
| Forklift Attachment | 5600kg | 2900kg | 1400kg |
| Lifting Beam | 6000kg | 4500kg | 2400kg |
| Spreader Beam | 10,000kg | 10,000kg | 10,000kg |
