$2,540.00

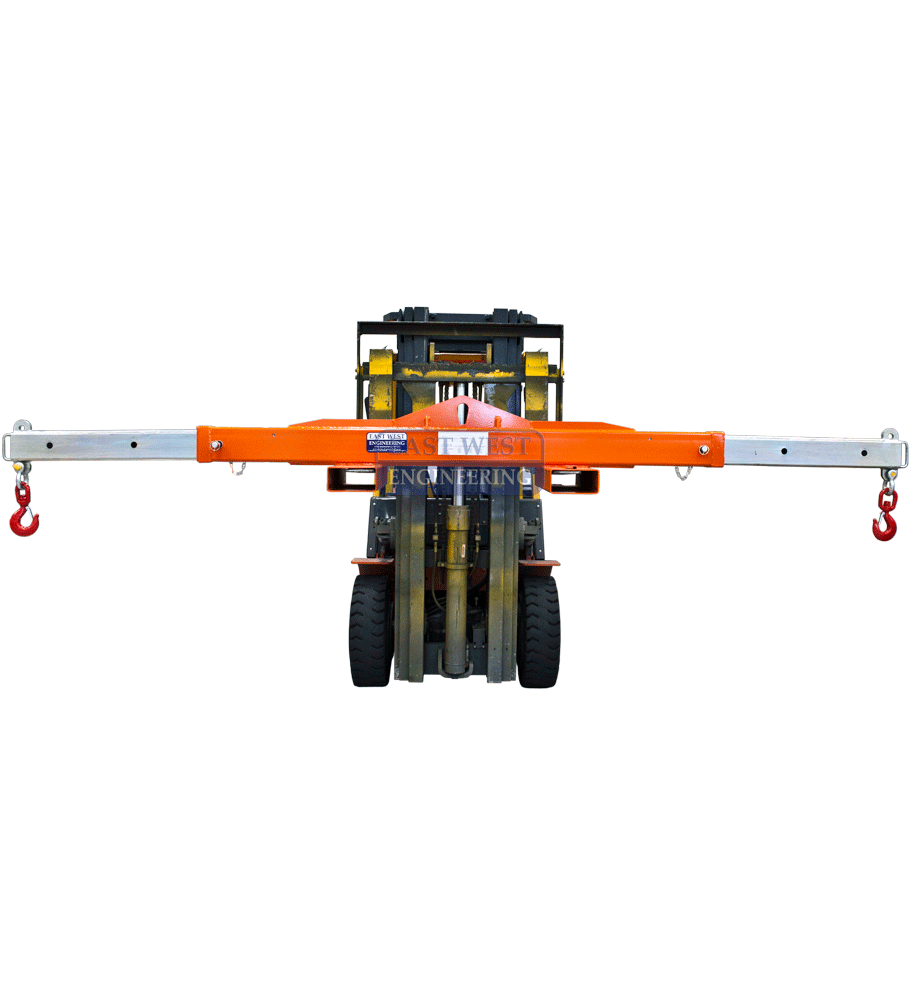

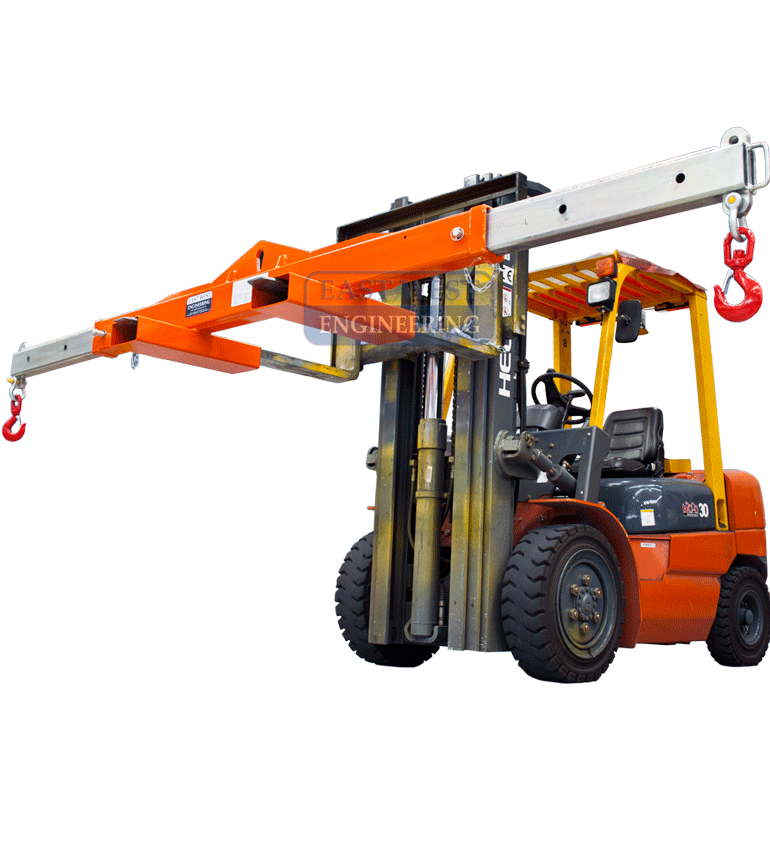

The CFL2439 Spreader Beam is a unique multitasking Beam which can be used by overhead crane or forklift to lift long loads. When used by crane, loads can be lifted via the centre single hook point as a ‘Lifting Beam’, or end lifted using a 2 leg chain sling as a ‘Spreader Beam’. If lifting by forklift, the 600mm long slipper pockets allow fast and safe connection to the truck.
FEATURES:
• Multi-tasking spreader beam
• Load connection points are adjustable to 3 positions by moving the extendable arm in position
• Safety pins used to securely lock extendable arm in position
• Fitted with 2 safety swivel hooks
• Certified to the relevant Australian Standards
• Zinc finish on extendable arms, enamel paint finish on main body
EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF COPY PRODUCTS
| Model | Description | Price (Excl. GST) | ||
|---|---|---|---|---|
| Model: CFL2439 | Description: 9T Spreader Beam | Price: $2,540.00 | ||
| Model | Model Description | Working Load Limit (WLL) kg | Fully Retracted (LC@2210mm) kg | Middle Position (LC@2970mm) kg | Fully Extended (LC@3730mm) kg |
|---|---|---|---|---|---|
| Model: CFL2439 | Model Description: 9T Spreader Beam | Working Load Limit (WLL) kg: 9,000 | Fully Retracted (LC@2210mm) kg: 3500 | Middle Position (LC@2970mm) kg: 1500 | Fully Extended (LC@3730mm) kg: 750 |
| Rated Capacity (RC) | |||
| when used as | Fully Retracted (LC@2405mm) |
Middle Position (LC@3165mm) |
Fully Extended (LC@3925mm) |
| Forklift Attachment | 3500kg | 1500kg | 750kg |
| Lifting Beam | 4500kg | 2500kg | 1300kg |
| Spreader Beam | 9000kg | 7200kg | 5600kg |
