$4,780.00

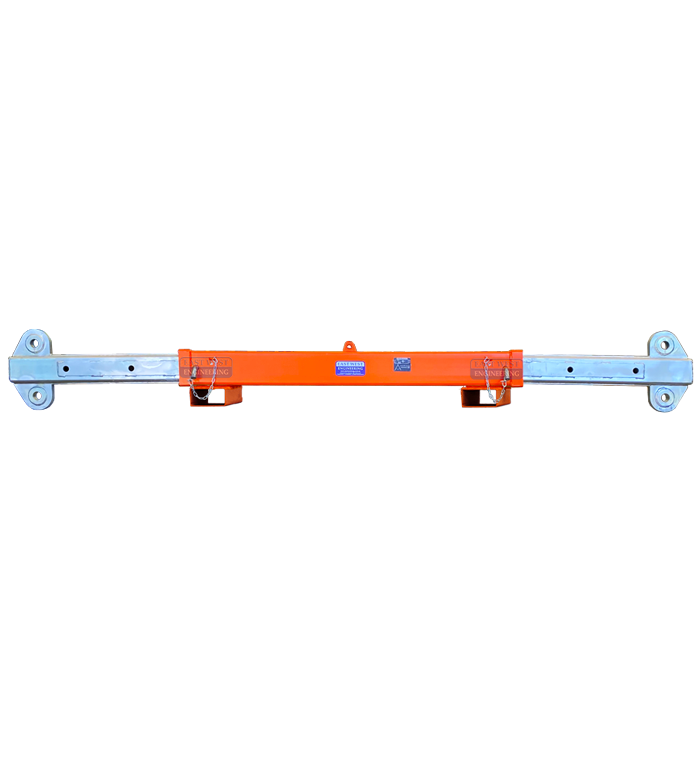

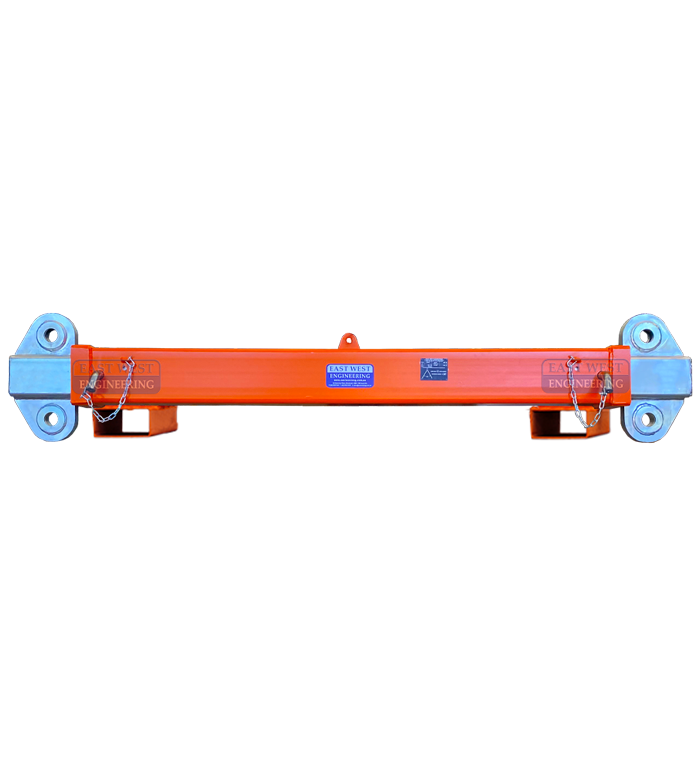

The CFH2233 Spreader Beam is designed to lift long heavy loads weighing up to 40T by overhead crane or 15T by forklift. When used by crane, loads are end lifted using a 2 leg chain sling (as a Spreader Beam). If lifting by forklift, the 600mm long slipper pockets allow fast and safe connection to the truck.
FEATURES:
• Multi-tasking spreader beam
• Load connection points are adjustable to 3 positions by moving the extendable arm
• Safety pins used to securely lock extendable arm in position
• Supplied standard with 2 safety swivel hooks
• Centre lifting point provided for transporting spreader beam
• Certified to the relevant Australian Standards
• Centre lifting point fitted for transport only
• Zinc finish on extendable arms, enamel paint finish on main body
EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF COPY PRODUCTS.
Strictly for use as a spreader beam. Centre lifting point for is provided for transport purpose only, not for lifting under load.
| Model | Description | Price (Excl. GST) | ||
|---|---|---|---|---|
| Model: CFH2233 | Description: Crane Spreader Beam 40T | Price: $4,780.00 | ||
| Model | Model Description | Working Load Limit (WLL) kg | Fully Retracted (LC@2210mm) kg | Middle Position (LC@2970mm) kg | Fully Extended (LC@3730mm) kg |
|---|---|---|---|---|---|
| Model: CFH2233 | Model Description: Crane Spreader Beam 40T | Working Load Limit (WLL) kg: 40,000 | Fully Retracted (LC@2210mm) kg: 15,000 | Middle Position (LC@2970mm) kg: 12,000 | Fully Extended (LC@3730mm) kg: 10,000 |
| Rated Capacity (RC) | |||
| when used as | Fully Retracted (LC@2210mm) |
Middle Position (LC@2770mm) |
Fully Extended (LC@3330mm) |
| Forklift Attachment | 15,000kg | 12,000kg | 10,000kg |
| Spreader Beam | 40,000kg | 40,000kg | 40,000kg |
