Price range: $7,190.00 through $7,480.00

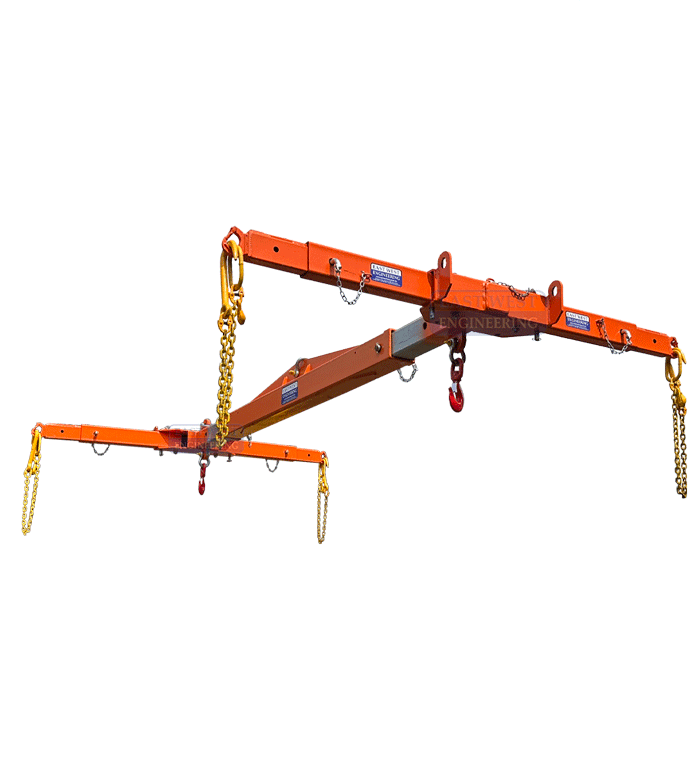

The CEMH-2T H-Frame Spreader Beam is designed for safe lifting of long, heavy loads by crane. With unique pivoting support arms, this spreader beam easily coverts into an H-Frame structure to suit wide loads such as reo mesh, bar and prefab structures. The H-shaped design provides greater stability and load distribution, minimising sway and risk of load shifting during lifting operations.
FEATURES:
• Suitable for single, 2 or 4 point lift depending on application
• Load connection points on main beam are adjustable to 3 positions
• H-Frame arms adjustable to 2 positions
• 1m chain & mesh hooks supplied
• Chain shortener allows adjustment of load depth
• H-shaped design provides greater stability when lifting heavy or oversized loads
• H-Frame arms fold into main beam for ease of transport and storage
• Ideal for lifting reo mesh, bar, machinery, industrial parts, construction materials such as steel beams and prefabricated structures etc
• Also available in model with fork pocket (CFMH-2T) for transporting unit around site by forklift
• Enamel paint finish
EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF COPY PRODUCTS
| Model | Description | Price (Excl. GST) | ||
|---|---|---|---|---|
| Model: CEMH-2T | Description: H-Frame Spreader Beam | Price: $7,190.00 | ||
| Model: CFMH-2T | Description: H-Frame Spreader Beam with fork pockets | Price: $7,480.00 | ||
| Model | Model Description | Fully Retracted (LC@2210mm) kg | Middle Position (LC@2970mm) kg | Fully Extended (LC@3730mm) kg |
|---|---|---|---|---|
| Model: CEMH-2T | Model Description: H-Frame Spreader Beam | Fully Retracted (LC@2210mm) kg: 2500 | Middle Position (LC@2970mm) kg: 3260 | Fully Extended (LC@3730mm) kg: 4020 |
| Model: CFMH-2T | Model Description: H-Frame Spreader Beam with fork pockets | Fully Retracted (LC@2210mm) kg: 2500 | Middle Position (LC@2970mm) kg: 3260 | Fully Extended (LC@3730mm) kg: 2400 |
| Rated Capacity (RC) - 60° chain angle |
|||
| When used as |
Fully Retracted (LC@2380mm) |
Middle Position (LC@3140mm) |
Fully Extended (LC@3900mm) |
| Length |
2500mm | 3260mm |
4020mm |
| Lifting Beam (Single point) | 6000kg | 4500kg | 2400kg |
| Spreader Beam (2 point) | 10,000kg | 10,000kg | 10,000kg |
| H-Frame (Position 1 & 2)) | 2000kg | 2000kg | 2000kg |
