$2,370.00

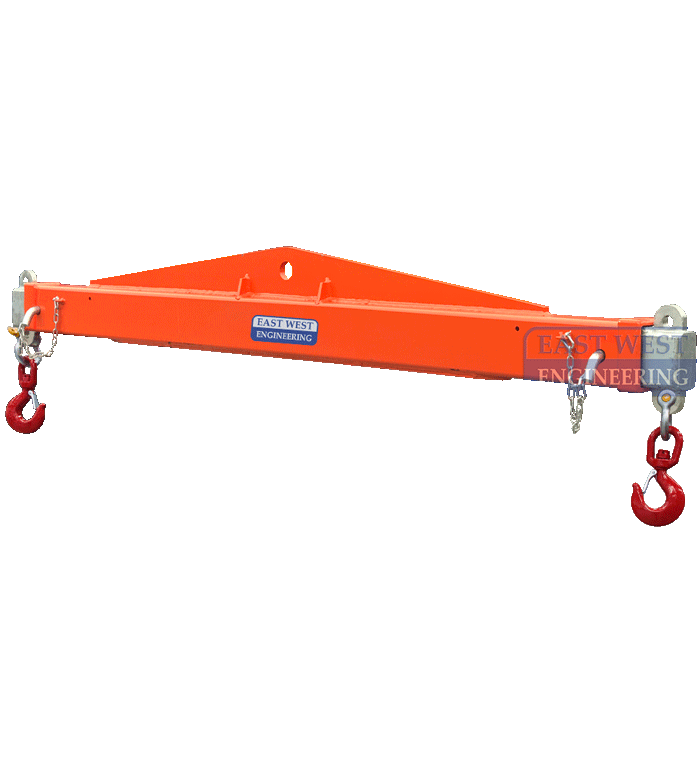

The CEL2439 Crane Spreader Beam is designed to lift long loads via the centre single hook point as a ‘Lifting Beam’, or end lifted using a 2 leg chain sling as a ‘Spreader Beam’ with a truck mounted or overhead crane.
FEATURES:
• Multi-tasking spreader beam
• Used as a ‘Lifting Beam’ by using the centre hook point
• Used as a ‘Spreader Beam’ when using the end hooks with a 2 leg chain sling
• Load connection points are adjustable to 3 positions

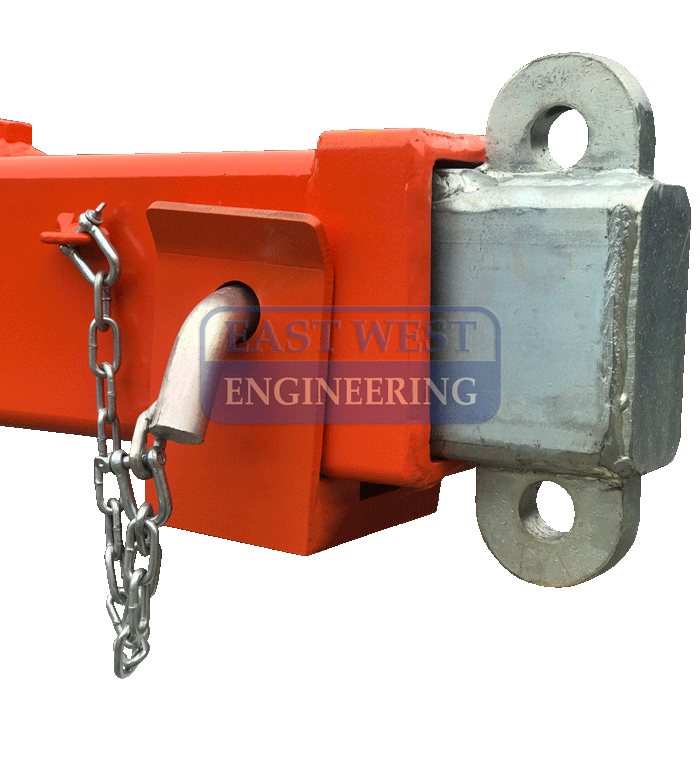

• Safety pins used to securely lock extendable arm in position
• Fitted with 2 safety swivel hooks
• Certified to the relevant Australian Standards
• Zinc finish on extendable arms, enamel paint finish on main body
EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF COPY PRODUCTS
| Model | Description | Price (Excl. GST) | ||
|---|---|---|---|---|
| Model: CEL2439 | Description: Crane Spreader Beam 9T | Price: $2,370.00 | ||
| Model | Model Description | Working Load Limit (WLL) kg |
|---|---|---|
| Model: CEL2439 | Model Description: Crane Spreader Beam 9T | Working Load Limit (WLL) kg: 9,000 |
| Rated Capacity (RC) - 60° chain angle |
|||
| when used as |
Fully Retracted (LC@2405mm) |
Middle Position (LC@3165mm) |
Fully Extended (LC@3925mm) |
| Length |
2500mm | 3260mm |
4020mm |
| Lifting Beam | 4500kg | 2500kg | 1300kg |
| Spreader Beam | 9000kg | 7200kg | 5600kg |
