$3,320.00

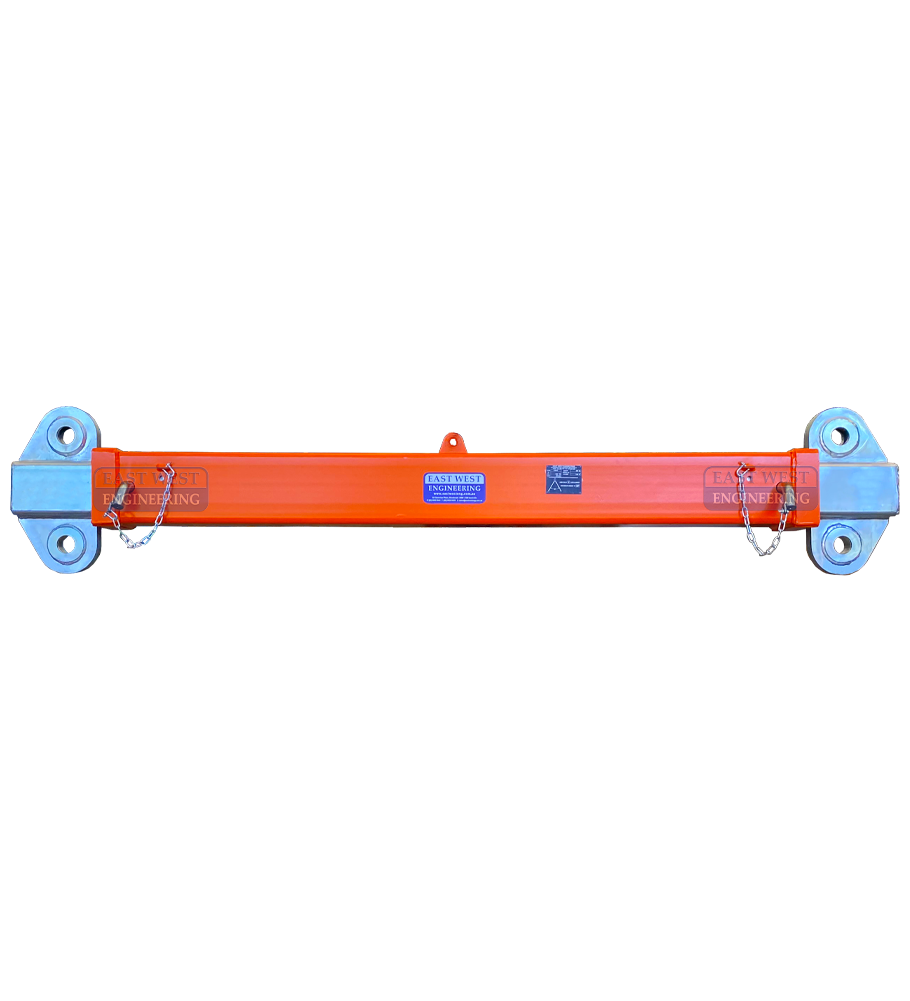

The CEH2439 Crane Spreader Beam is designed to end lift long, heavy loads using a 2 leg chain sling as a ‘Spreader Beam’ by overhead crane.
FEATURES:
• Used to lift long heavy loads up to 40T
• End lift as a spreader beam via the end hooks and 2 leg chain sling
• Load connection points are adjustable to 3 positions

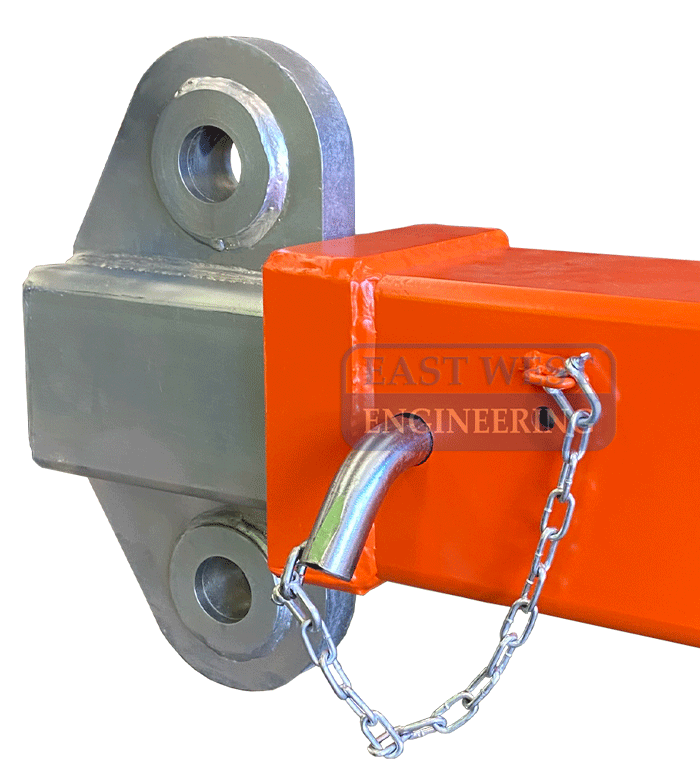

• Safety pins used to securely lock extendable arm in position
• Centre lifting point provided for transporting spreader beam
• 2 leg chain sling distributes the load weight making it more stable
• Sling angle can be controlled allowing you to reduce the risk of load damage
• Supplied with 2 retaining brackets for storage
• Certified to the relevant Australian Standards
• Zinc finish on extendable arms, enamel paint finish on main body
* Not for use with a forklift.
* Strictly for use as a spreader beam. Centre lifting point for is provided for transport purpose only, not for lifting under load.
* Lifting hooks and shackles NOT supplied.
EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF COPY PRODUCTS
| Model | Description | Price (Excl. GST) | ||
|---|---|---|---|---|
| Model: CEH2439 | Description: Crane Spreader Beam 40T | Price: $3,320.00 | ||
| Model | Model Description | Working Load Limit (WLL) kg | Fully Retracted (LC@2210mm) kg | Middle Position (LC@2970mm) kg | Fully Extended (LC@3730mm) kg |
|---|---|---|---|---|---|
| Model: CEH2439 | Model Description: Crane Spreader Beam 40T | Working Load Limit (WLL) kg: 40,000 | Fully Retracted (LC@2210mm) kg: 40000 | Middle Position (LC@2970mm) kg: 40000 | Fully Extended (LC@3730mm) kg: 20000 |
| Rated Capacity (RC) | |||
| when used as | Fully Retracted (LC@2210mm) |
Middle Position (LC@2970mm) |
Fully Extended (LC@3730mm) |
| Length | 2500mm | 3260mm | 4020mm |
| Spreader Beam | 40,000kg | 40,000kg | 20,000kg |
