Price range: $1,350.00 through $1,600.00

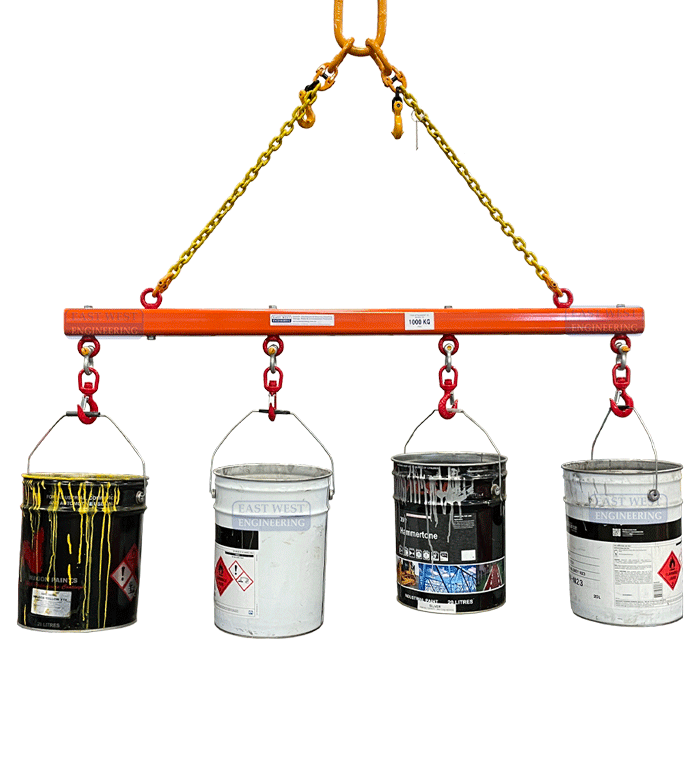

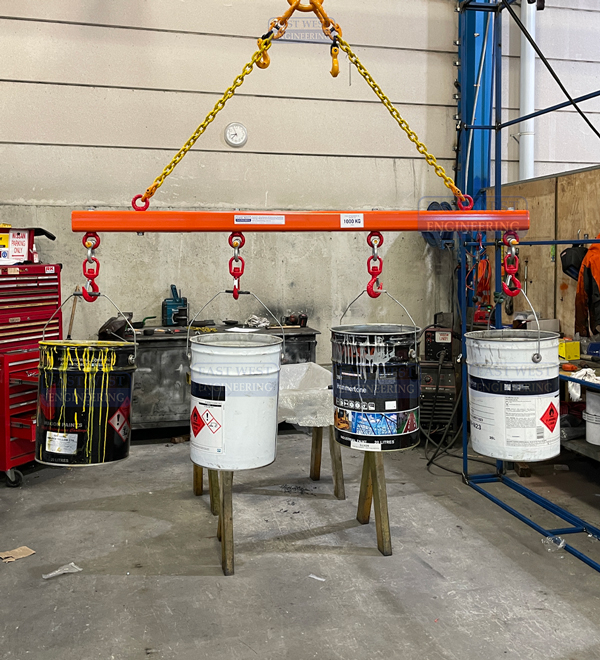

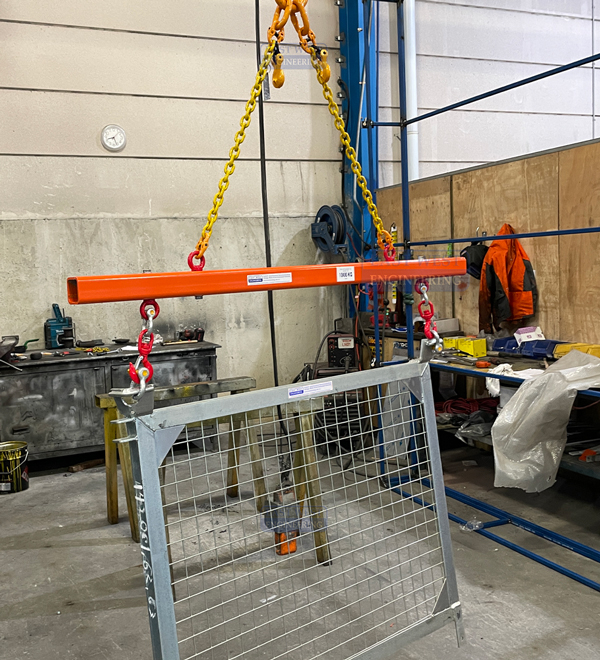

The CEGP Multi Point Spreader Beam is designed in a range of lengths to suit any lifting application required by overhead crane.
FEATURES:

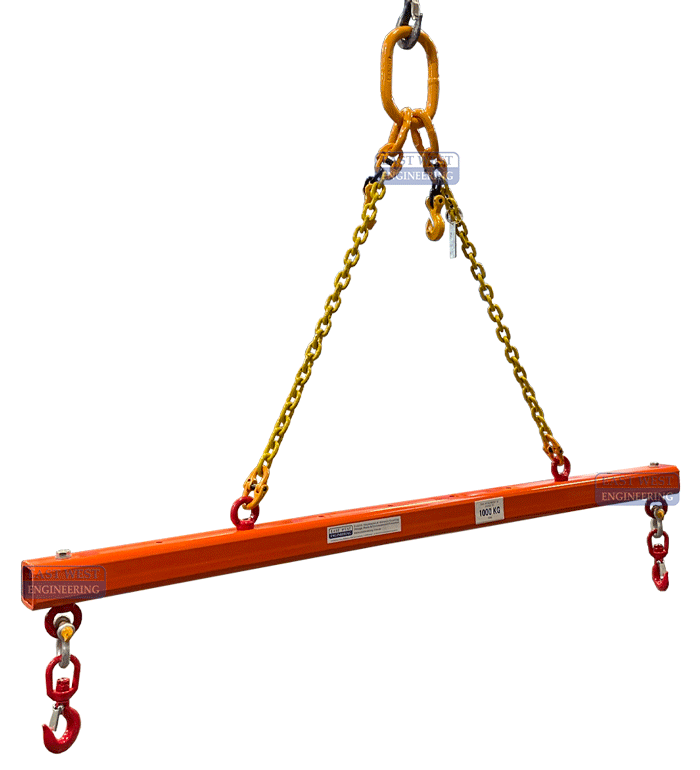

• End lift via the end hooks and 2 leg chain sling
• Supplied standard with 8 lifting positions
• Can be custom made to any width or capacity
• Fitted with 4 safety swivel hooks
• Supplied with lifting chains
• Certified to the relevant Australian Standards
• Enamel paint finish
EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF COPY PRODUCTS
| Model | Description | Price (Excl. GST) | ||
|---|---|---|---|---|
| Model: CEGP12010 | Description: WLL 1000kg - Max 1100mm centres | Price: $1,350.00 | ||
| Model: CEGP18010 | Description: WLL 1000kg - Max 1700mm centres | Price: $1,480.00 | ||
| Model: CEGP24010 | Description: WLL 1000kg - Max 2300mm centres | Price: $1,600.00 | ||
| Model | Model Description | Working Load Limit (WLL) kg | Max. Load Lift Centre (mm) | Length (mm) |
|---|---|---|---|---|
| Model: CEGP12010 | Model Description: WLL 1000kg - Max 1100mm centres | Working Load Limit (WLL) kg: 1000 | Max. Load Lift Centre (mm): 1100 | Length (mm): 1200 |
| Model: CEGP18010 | Model Description: WLL 1000kg - Max 1700mm centres | Working Load Limit (WLL) kg: 1000 | Max. Load Lift Centre (mm): 1700 | Length (mm): 1800 |
| Model: CEGP24010 | Model Description: WLL 1000kg - Max 2300mm centres | Working Load Limit (WLL) kg: 1000 | Max. Load Lift Centre (mm): 2300 | Length (mm): 2400 |
