CDS Cable Drum Spreader Beam

Price range: $4,710.00 through $7,850.00

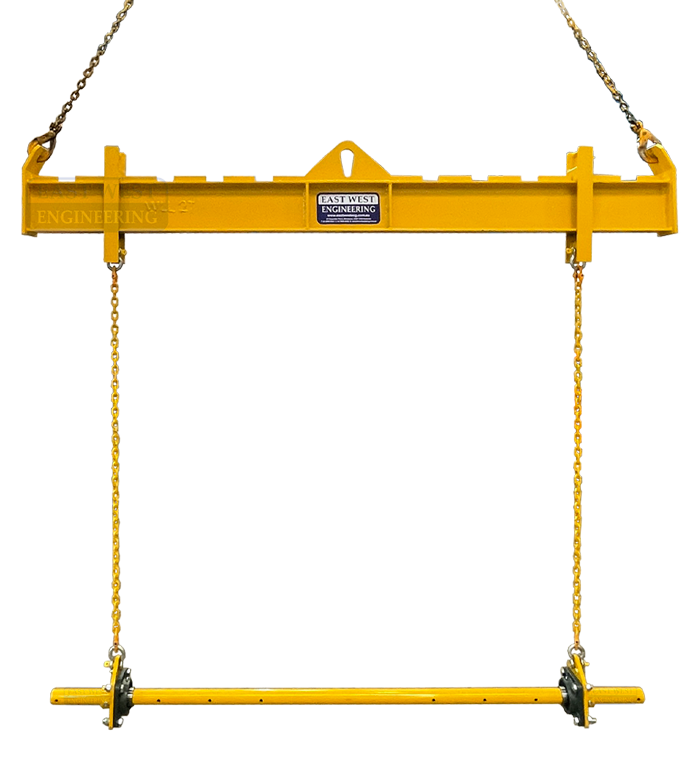

The CDS Cable Drum Spreader Beam is designed for the safe transport of cable drums and payout during installation.  The shaft runs through the centre of the drum and is connected at both ends to a spreader beam via two chains. Fitted with bearings, the cable drum freely rotates for smooth unwinding of cables. Available in 2 standard sizes or can be custom made to any length or capacity to suit the application.

FEATURES:
• Suits lifting and dispensing of cables from a drum by crane
• Adjustable lift positions to suit varying drum sizes
• Bearings fitted for smooth rotation of cable drums
• Lightweight steel spindle allows easy placement through drum centre
• Beam to spindle link chain supplied
• 2T and 6T capacity models available
• Can be customised to suit application on request
• Enamel paint finish

2 leg chain sling not included. Overhead lifting chains shown for illustrative purposes only.

Model Description Price (Excl. GST)
Model: CDS2X2Description: WLL 2000kg x 400-1800mm widePrice: $4,710.00

Add to Quote

Model: CDS6X2Description: WLL 6000kg x 400-1800mm widePrice: $7,850.00

Add to Quote

ModelModel DescriptionWorking Load Limit (WLL) kgDrum Width (mm)Max. Drum Diameter (mm)Min. Drum Hole Diameter (mm)
Model: CDS2X2Model Description: WLL 2000kg x 400-1800mm wideWorking Load Limit (WLL) kg: 2000Drum Width (mm): 400-1800Max. Drum Diameter (mm): 2500Min. Drum Hole Diameter (mm): 55
Model: CDS6X2Model Description: WLL 6000kg x 400-1800mm wideWorking Load Limit (WLL) kg: 6000Drum Width (mm): 400-1800Max. Drum Diameter (mm): 2500Min. Drum Hole Diameter (mm): 80
