BWB Bulk Waste Crane Bin

Price range: $2,880.00 through $25,070.00

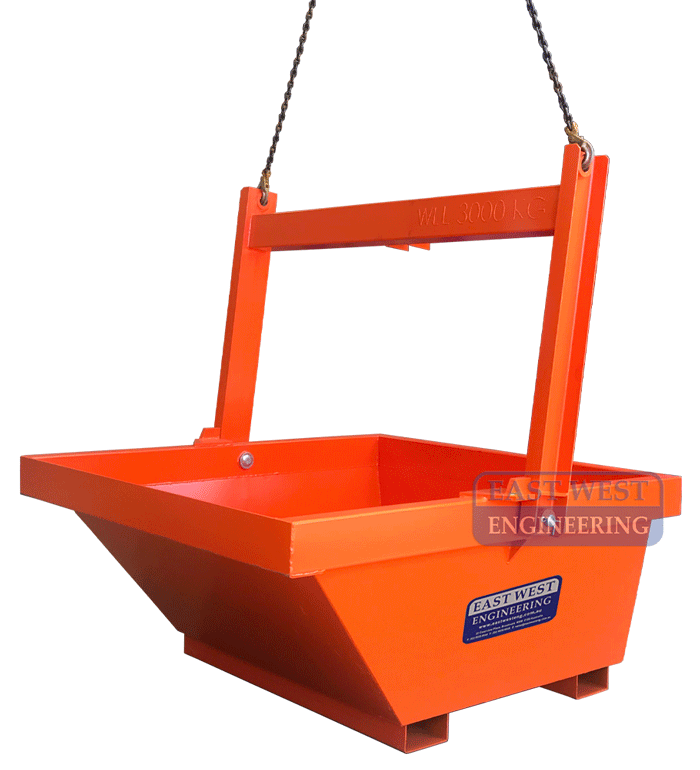

The BWB Bulk Waste Crane Bin is a heavy load crane bin, designed to allow transport and dumping of waste on building and mining sites where large capacities are required.

FEATURES:
• Heavy duty construction suits bulk waste such as sand, gravel, excavation waste and scrap metal
• For use with overhead crane
• Available in 4 sizes to suit small to large scale operations
• Tip action operated by lowering and automatically locking the pivoting yoke at rear of bin
• Fitted with fork pockets to allow onsite transport by forklift

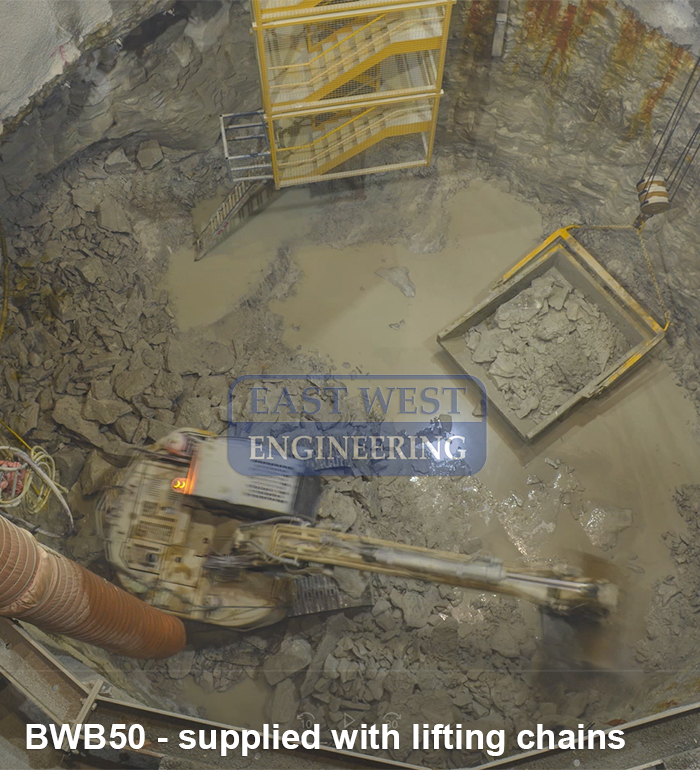

• Type BWB50 supplied with lifting chains
• Enamel paint finish

View Pricing

SKU: BWB_Main Categories: , , ,
Model Description Price (Excl. GST)
Model: BWB10Description: 1.5T Bulk Waste Crane Bin - 1.0cu.mPrice: $2,880.00

Add to Quote

Model: BWB20Description: 3T Bulk Waste Crane Bin - 1.5cu.mPrice: $6,170.00

Add to Quote

Model: BWB30Description: 5T Bulk Waste Crane Bin - 3.0cu.mPrice: $8,790.00

Add to Quote

Model: BWB50Description: 14T Bulk Waste Crane Bin - 5.0cu.mPrice: $25,070.00

Add to Quote

ModelModel DescriptionWorking Load Limit (WLL) kgCapacity (cu.m)Bin Length (mm)Bin Width (mm)Bin Height (mm)
Model: BWB10Model Description: 1.5T Bulk Waste Crane Bin - 1.0cu.mWorking Load Limit (WLL) kg: 1500Capacity (cu.m): 0.8Bin Length (mm): 1855Bin Width (mm): 1100Bin Height (mm): 850
Model: BWB20Model Description: 3T Bulk Waste Crane Bin - 1.5cu.mWorking Load Limit (WLL) kg: 3000Capacity (cu.m): 1.5Bin Length (mm): 1890Bin Width (mm): 1705Bin Height (mm): 855
Model: BWB30Model Description: 5T Bulk Waste Crane Bin - 3.0cu.mWorking Load Limit (WLL) kg: 5000Capacity (cu.m): 3.0Bin Length (mm): 2510Bin Width (mm): 1700Bin Height (mm): 905
Model: BWB50Model Description: 14T Bulk Waste Crane Bin - 5.0cu.mWorking Load Limit (WLL) kg: 14,000Capacity (cu.m): 5.0Bin Length (mm): 3130Bin Width (mm): 2620Bin Height (mm): 960
* Bin dimensions exclude pivoting yoke and locking mechanism. Further details available on request

** O/All dimensions with pivoting yoke in lock position
