Price range: $1,650.00 through $2,890.00

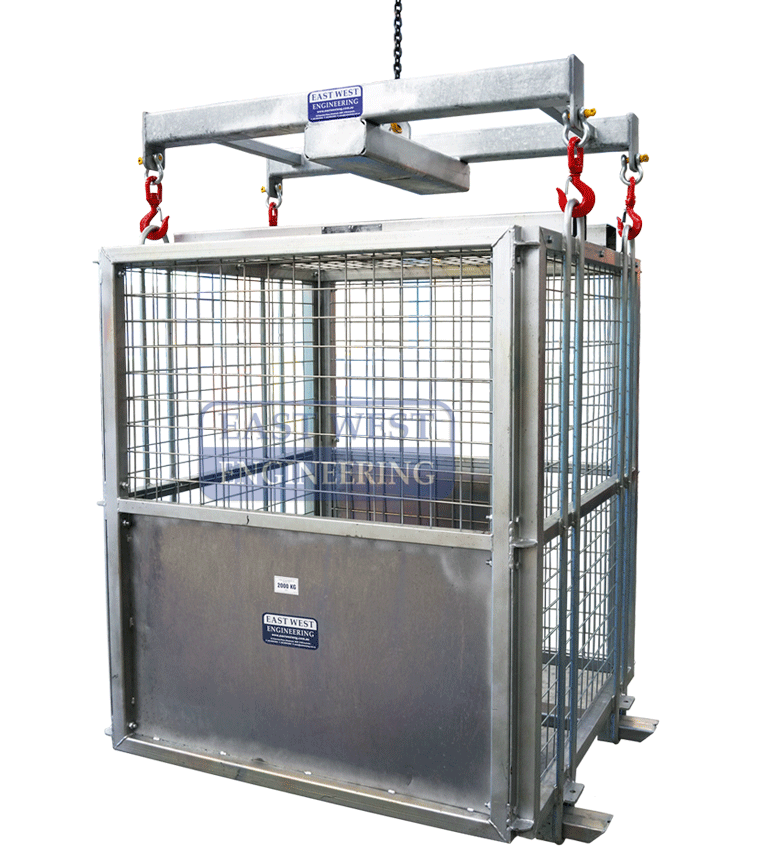

The BSN-6 Brick Cage is a fully enclosed cage designed to safely transport pallets of bricks or similar loose products to a work location on building sites via overhead crane.
FEATURES:
• Suits bricks or similar products
• Suitable for use with 1200mm square pallets up to 1500mm high
• Fully enclosed mesh panelling
• Fitted with crane lugs (4 point lift)
• Signage panels included on 2 opposite sides
• Tine storage when not hoisting

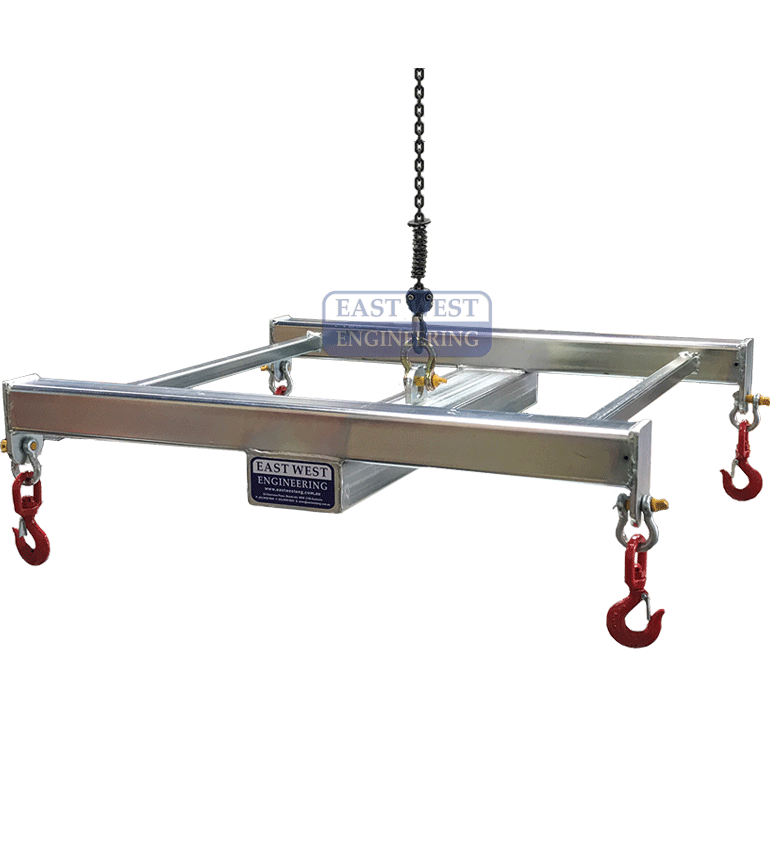

• Optional single point Lifting Frame (BSN6-CL) available where head height is an issue
• Zinc finish
Supplied standard as flatpack (BSN-6F) for on-site assembly or fully assembled (BSN-6W) on request.
Chains not included.
| Model | Description | Price (Excl. GST) | ||
|---|---|---|---|---|
Model:  BSN-6F | Description: Brick Cage - flatpack | Price: $2,790.00 | ||
Model:  BSN6-CL | Description: Brick Cage Lifting Frame | Price: $1,650.00 | ||
| Model: BSN-6W | Description: Brick Cage - welded | Price: $2,890.00 | ||

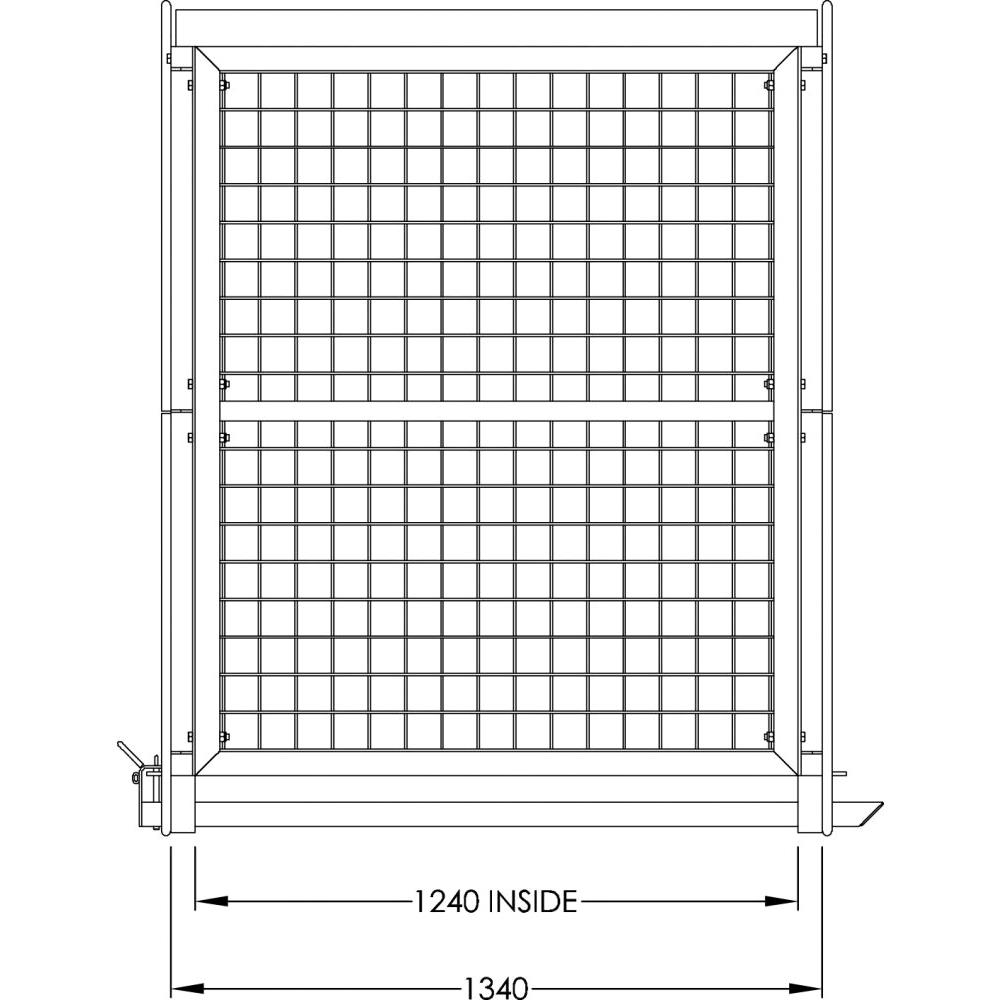

| Model | Model Description | Working Load Limit (WLL) kg | Internal Dimensions (mm) | Height (mm) | Max. Pallet Height (mm) | Hook Centres (mm) |
|---|---|---|---|---|---|---|
| Model: BSN-6F | Model Description: Brick Cage - flatpack | Working Load Limit (WLL) kg: 2000 | Internal Dimensions (mm): | Height (mm): 1720 | Max. Pallet Height (mm): 1500 | Hook Centres (mm): |
| Model: BSN6-CL | Model Description: Brick Cage Lifting Frame | Working Load Limit (WLL) kg: 2300 | Internal Dimensions (mm): 1480 x 820 x 215 | Height (mm): | Max. Pallet Height (mm): | Hook Centres (mm): 720 x 1360 |
| Model: BSN-6W | Model Description: Brick Cage - welded | Working Load Limit (WLL) kg: 2000 | Internal Dimensions (mm): | Height (mm): 1720 | Max. Pallet Height (mm): 1500 | Hook Centres (mm): |
