Price range: $130.00 through $990.00

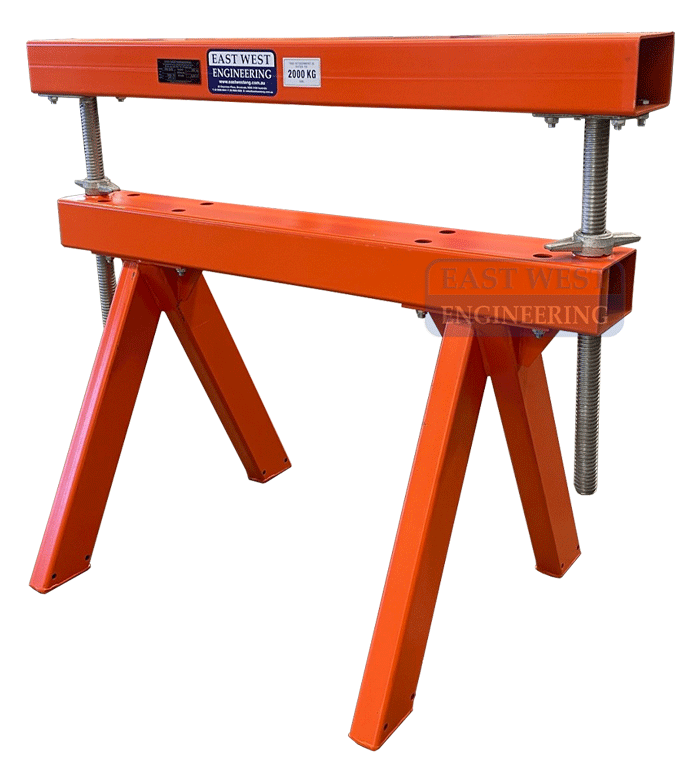

The ATSJ Support Trestle with adjustable height is designed to safely support industrial loads around the workplace or construction site. These heavy duty steel units come in a range of sizes to suit various applications.
FEATURES:
• Heavy duty steel construction for maximum load support
• Adjustable height
• Optional rubber profiles (ATR120) protect the load from damage and help prevent movement
• Available in standard models (ATS)
• Available in models with lockable wheels (ATSW) for mobility around the workshop
• Available in models with adjustable height and wheels (ATSJW) for complete flexibility
• Easy to assemble
• Ideal for industrial or construction applications
• Design & engineered to relevant Australian Standards
• Enamel paint finish
Supplied standard as flatpack (for on-site assembly)

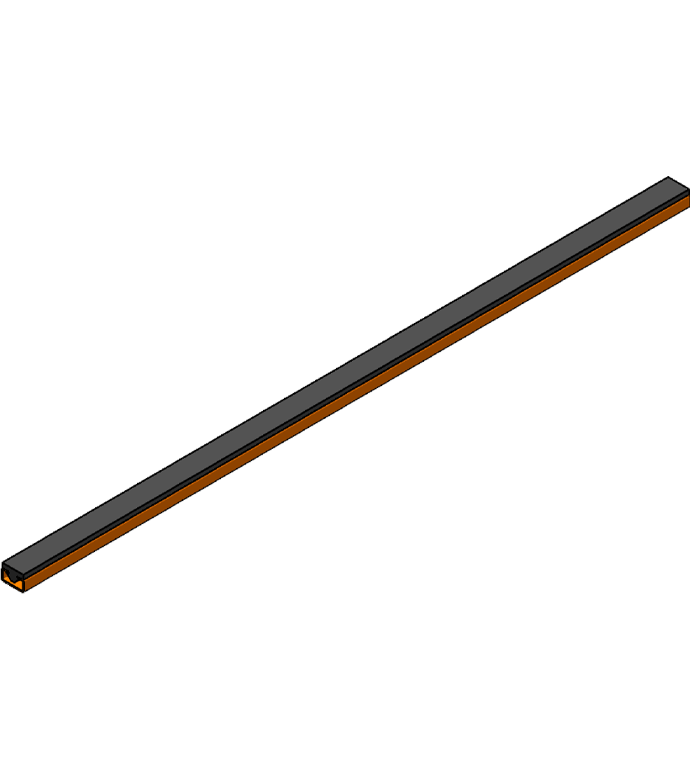

Optional ATRC120 Rubber profile channels are supplied in 1.2m lengths. 2 units required for 2.4m length trestles
Trestles sold separately.
| Model | Description | Price (Excl. GST) | ||
|---|---|---|---|---|
Model:  ATSJ85-120 | Description: 850-1300mm Adjustable height | Price: $920.00 | ||
Model:  ATSJ105-120 | Description: 1050-1500mm Adjustable height | Price: $990.00 | ||
Model:  ATR120 | Description: Optional Rubber Profile Channel - 1200mm | Price: $130.00 | ||
| Model | Model Description | Spec table NOTES | Length (mm) | Width (mm) | Height (mm) | Height w/o adj. beam (mm) | Height Lowered (mm) | Height Extended (mm) |
|---|---|---|---|---|---|---|---|---|
| Model: ATSJ85-120 | Model Description: 850-1300mm Adjustable height | Spec table NOTES: * per trestle | Length (mm): 1200 | Width (mm): | Height (mm): | Height w/o adj. beam (mm): 700 | Height Lowered (mm): 850 | Height Extended (mm): 1300 |
| Model: ATSJ105-120 | Model Description: 1050-1500mm Adjustable height | Spec table NOTES: | Length (mm): 1200 | Width (mm): | Height (mm): | Height w/o adj. beam (mm): 900 | Height Lowered (mm): 1050 | Height Extended (mm): 1500 |
| Model: ATR120 | Model Description: Optional Rubber Profile Channel - 1200mm | Spec table NOTES: | Length (mm): 1200 | Width (mm): 40 | Height (mm): 20 | Height w/o adj. beam (mm): | Height Lowered (mm): | Height Extended (mm): |
