Name: ATS Support Trestle
SKU: ATS_Main
Availability: InStock

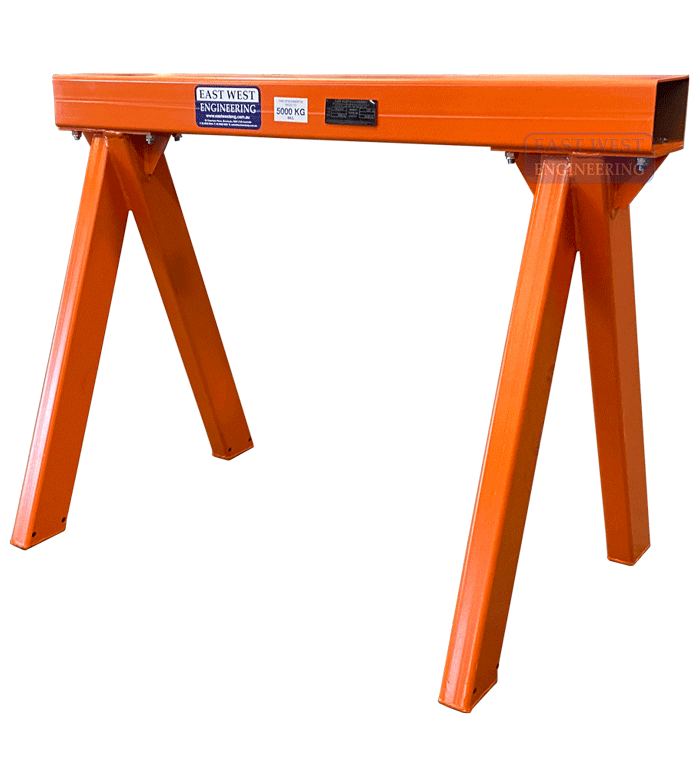

ATS Support Trestle

The ATS Support Trestle is designed to safely support industrial loads around the workplace or construction site. These heavy duty steel units come in a range of sizes to suit various applications.

FEATURES:
• Heavy duty steel construction for maximum load support
• Optional rubber profiles (ATR120) protect the load from damage and help prevent movement
• Available in models with lockable wheels (ATSW) for mobility around the workshop
• Available in models with adjustable height (ATSJ)
• Available in models with adjustable height and wheels (ATSJW) for complete flexibility
• Easy to assemble
• Ideal for industrial or construction applications
• Design & engineered to relevant Australian Standards
• Enamel paint finish

Supplied standard as flatpack (for on-site assembly)

Compare

Optional ATRC120 Rubber profile channels are supplied in 1.2m lengths. 2 units required for 2.4m length trestles

Trestles sold separately.

Model	Description	Price (Excl. GST)
Model: ATS70-120	Description: 700(h) x 1200mm long	Price: $560.00	Compare Product	Add to Quote
Model: ATS90-120	Description: 900(h) x 1200mm long	Price: $630.00	Compare Product	Add to Quote
Model: ATS70-240	Description: 700(h) x 2400mm long	Price: $950.00	Compare Product	Add to Quote
Model: ATS90-240	Description: 900(h) x 2400mm long	Price: $1,050.00	Compare Product	Add to Quote
Model: ATR120	Description: Optional Rubber Profile Channel - 1200mm	Price: $130.00	Compare Product	Add to Quote

Model	Model Description	Spec table NOTES	Length (mm)	Width (mm)	Height (mm)	No. of Legs / Unit
Model: ATS70-120	Model Description: 700(h) x 1200mm long	Spec table NOTES: * Maximum depth of load that can be stored on each side of trolley ** Type AFT120-180 has a WLL of 4000kg without wheels and 2000kg with wheels installed.	Length (mm): 1200	Width (mm):	Height (mm): 700	No. of Legs / Unit: 2
Model: ATS90-120	Model Description: 900(h) x 1200mm long	Spec table NOTES:	Length (mm): 1200	Width (mm):	Height (mm): 900	No. of Legs / Unit: 2
Model: ATS70-240	Model Description: 700(h) x 2400mm long	Spec table NOTES:	Length (mm): 2400	Width (mm):	Height (mm): 700	No. of Legs / Unit: 3
Model: ATS90-240	Model Description: 900(h) x 2400mm long	Spec table NOTES:	Length (mm): 2400	Width (mm):	Height (mm): 900	No. of Legs / Unit: 3
Model: ATR120	Model Description: Optional Rubber Profile Channel - 1200mm	Spec table NOTES:	Length (mm): 1200	Width (mm): 40	Height (mm): 20	No. of Legs / Unit:
