Price range: $1,710.00 through $3,810.00

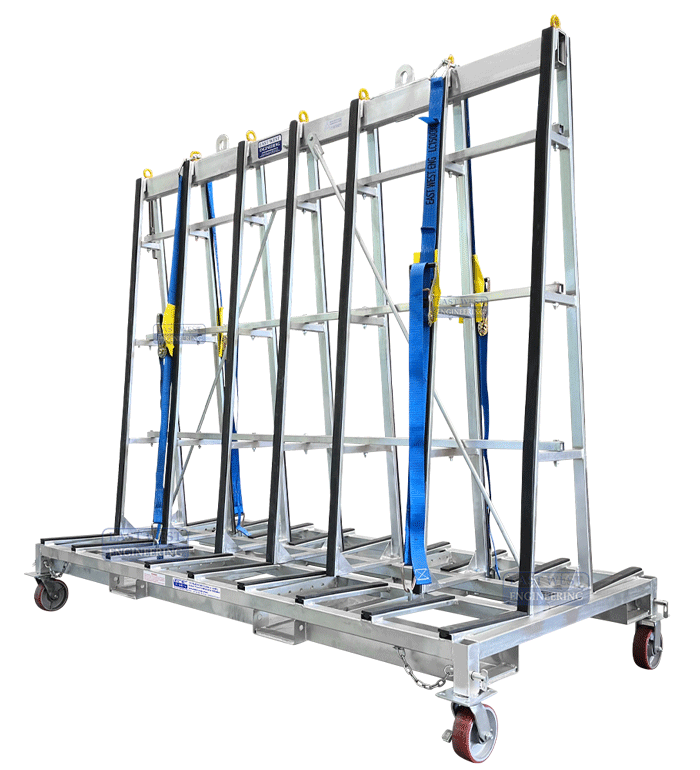

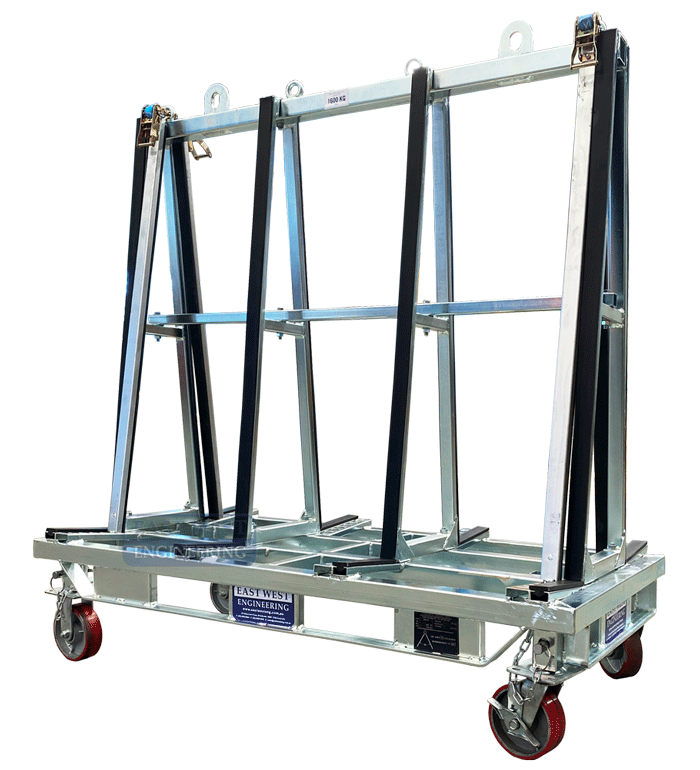

The AFT Glass A Frame is designed for storing and transporting glass, stone and other sheet materials by forklift, crane or wheeled manually.
FEATURES:
Supplied standard as flatpack (for on-site assembly).
Due to transport safety requirements wheels are no longer pre-fitted. Included wheel kit is supplied for fitment onsite, not pre-fitted.
| Model | Description | Price (Excl. GST) | ||
|---|---|---|---|---|
| Model: AFT80-120 | Description: Glass A-Frame - 800(w) x 1500(l) mm | Price: $1,710.00 | ||
| Model: AFT115-120 | Description: Glass A-Frame - 1150(w) x 1800(l) mm | Price: $1,980.00 | ||
| Model: AFT120-180 | Description: Glass A-Frame - 1200(w) x 2400(l) mm | Price: $3,810.00 | ||
| Model | Model Description | Working Load Limit (WLL) kg | Working Load Limit excl Wheels (WLL) kg | Max. Load Height (mm) | Max. Load Depth* (mm) |
|---|---|---|---|---|---|
| Model: AFT80-120 | Model Description: Glass A-Frame - 800(w) x 1500(l) mm | Working Load Limit (WLL) kg: 1500 | Working Load Limit excl Wheels (WLL) kg: 1500 | Max. Load Height (mm): 1200 | Max. Load Depth* (mm): 215 |
| Model: AFT115-120 | Model Description: Glass A-Frame - 1150(w) x 1800(l) mm | Working Load Limit (WLL) kg: 2000 | Working Load Limit excl Wheels (WLL) kg: 2000 | Max. Load Height (mm): 1200 | Max. Load Depth* (mm): 340 |
| Model: AFT120-180 | Model Description: Glass A-Frame - 1200(w) x 2400(l) mm | Working Load Limit (WLL) kg: 2000 | Working Load Limit excl Wheels (WLL) kg: 4000 | Max. Load Height (mm): 1800 | Max. Load Depth* (mm): 390 |
